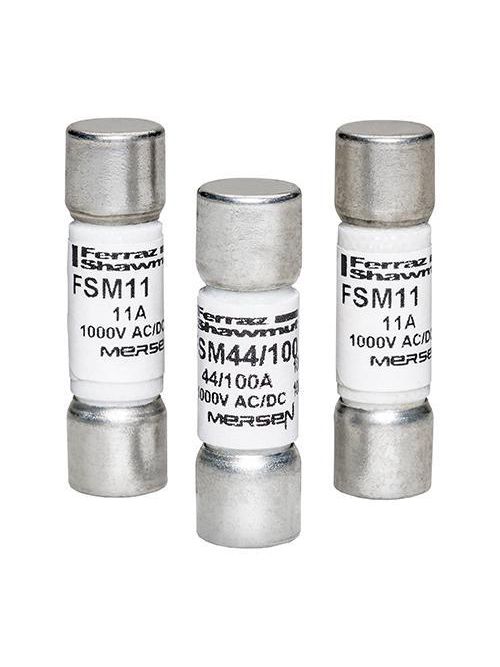

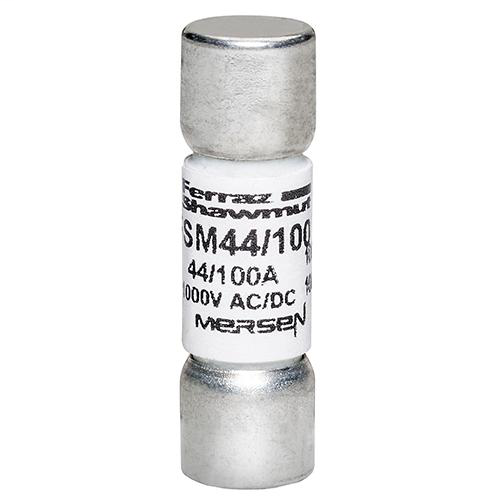

Ferraz Shawmut FSM44/100 1.375 x 0.406 Inch 44/100 Amp 1000 VAC/VDC Fast Acting Multimeter Fuse
Product image thumbnail 0
Product image thumbnail 1
$36.37/ea
In Stock | 13 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # FSM44/100
North Coast Part # 13843

Features

  • For the protection of multi-meters
  • 1000V AC/DC for full range protection
  • 100% Current rated for continuous current with L/R = 10mS carrying capability
  • Glass melamine body and plated terminals provide superior reliability and performance

Applications

  • Multi-meters

Approvals & Standards

  • UL Recognized component File E60314

Specifications

  • Rated voltage AC UL: 1000 V
  • Rated voltage DC UL: 1000 V
  • Fuse Class: Midget
  • Speed/Characteristic: Fast-Acting
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 20 kA
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.012 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.5 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.13 lb
  • Sell Pack Width: 2.06 in
  • Sell Pack Length: 3 in
  • Sell Pack Height: 1.19 in
> View Substitutes (1)

Overview

UPC 78200132665
Family Brand Name Ferraz Shawmut
GTiN 00782001326654
Length 1.5 in
Type Fast Acting
Diameter 0.41 in
Terminal Type Ferrule
Applications For Protection of Multi-Meters
Mounting Type Clip
Weight 0.012 lb
Pkg Qty 10
Insulation Material GMG
Construction Glass Melamine
Interrupt Rating 20 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 1000 V
Rated Voltage DC 1000 V
Fuse Class Midget
Voltage 1000 VAC
