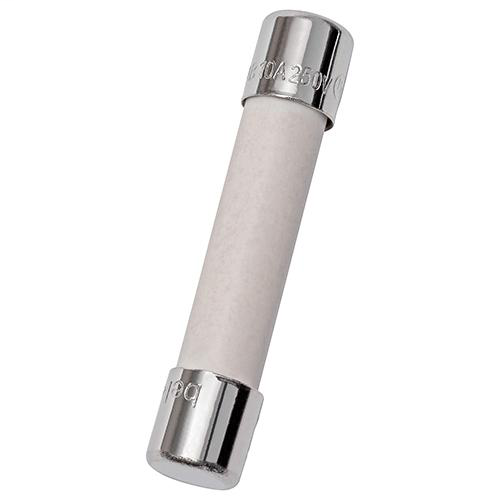

FERRAZ GAB1-1/2 250V 1-1/2A 1-1/4 X
$3.37/ea
Usually ships within 8 to 12 Days
ea
Adding...
Order in multiples of 5 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # GAB1-1/2
North Coast Part # 72704

Features

  • Ceramic body
  • Fast-acting
  • 1/4" x 1-1/4"

Applications

  • Electronic circuits

Approvals & Standards

  • 1/8A through 15A, 250VAC, UL Listed and CSA Certified
  • 20A through 30A, 250/125VAC, UL Recognized

Specifications

  • Rated voltage AC UL: 250 V
  • Ampere Rating: 1.5 A
  • ROHS Compliant: Yes
  • Fuse Class: Supplemental
  • Speed/Characteristic: Fast-Acting
  • Mounting: Clip
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: Ceramic

Product Dimensions

  • Product Weight: 0.01 lb
  • Product Diameter: 0.25 in
  • Product Length: 1.25 in

Packaging Dimensions

  • Sell Pack Quantity: 5 Each
  • Sell Pack Weight: 0.052 lb
  • Sell Pack Width: 1.5 in
  • Sell Pack Length: 1.25 in
  • Sell Pack Height: 0.25 in

Categories

Overview

UPC 78200129915
Family Brand Name Ferraz Shawmut
GTiN 00782001299156
Length 1.25 in
Type Fast Acting, Miniature
Diameter 0.25 in
Terminal Type Ferrule
Applications For Electronic Circuits
Mounting Type Clip
Weight 0.01 lb
Pkg Qty 5
Insulation Material Ceramic
Construction Ceramic
Contact Material Nickel Plated Brass
TC Connection Ferrule
Amperage 1.5 Amp
Blade Dimensions 1/4 in dia x 1-1/4 in L
Interrupt Rating 0.035 kA
Rated Voltage AC 250 V
Fuse Class Supplemental
Voltage null
