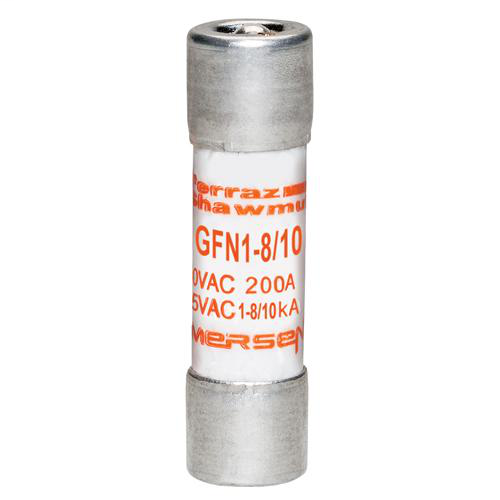

FERRAZ GFN1-8/10 76164-FUSE 250V 1-

Features

• Pin indicator provides visual indication of open fuse or actuates switch for remote signaling
• Numerous ratings for a wide variety of applications
• 12 second time-delay at 200% rating
• Can be used with UltraSafe™ fuse holders (1/10 - 10A)
• 1 1/2" x 13/32" (10 mm x 38 mm) dimensions

Applications

• For supplemental protection of circuits where time-delay and blown fuse indication are required, such as solenoid circuits or control circuits.

Specifications

• Sell Pack Height: 2.12 in
• Product Weight: 0.012 lb
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Mounting: Clip
• Sell Pack Weight: 0.13 lb
• Indication System: Yes
• Sell Pack Width: 0.88 in
• Sell Pack Length: 1.62 in
• Body/Insulating Material: PolyTube
• Connection/Terminal Type: Ferrule
• Sell Pack Quantity: 10 Each
• Indication System Type: Visual Indicator
• Speed/Characteristic: Time Delay
• Ampere Rating: 1.8 A
• Fuse Class: Midget
• Connection/Terminal Material: Tin-Plated Copper
• Rated voltage AC UL: 250 V

Approvals & Standards

• UL Listed to standard 248-14 (1/10 to 15A) File E33925
• CSA Certified to Standard C22.2 No. 248.14 (1/10 to 15A)
