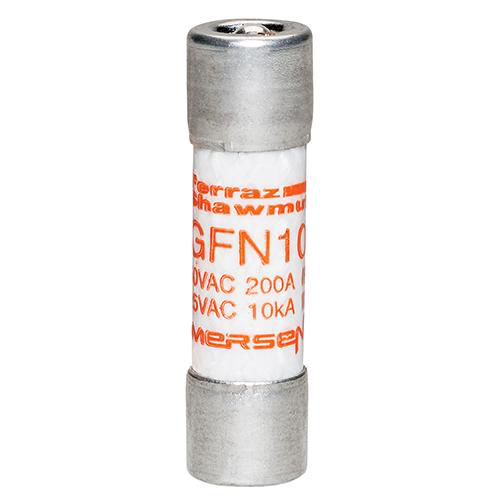

FERRAZ GFN10 76743- FUSE 250V 10A 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$19.65/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # GFN10
North Coast Part # 151518

Features

  • Pin indicator provides visual indication of open fuse or actuates switch for remote signaling
  • Numerous ratings for a wide variety of applications
  • 12 second time-delay at 200% rating
  • Can be used with UltraSafe™ fuse holders (1/10 - 10A)
  • 1 1/2" x 13/32" (10 mm x 38 mm) dimensions

Applications

  • For supplemental protection of circuits where time-delay and blown fuse indication are required, such as solenoid circuits or control circuits.

Approvals & Standards

  • UL Listed to standard 248-14 (1/10 to 15A) File E33925
  • CSA Certified to Standard C22.2 No. 248.14 (1/10 to 15A)

Specifications

  • Rated voltage AC UL: 250 V
  • Ampere Rating: 10 A
  • Fuse Class: Midget
  • Speed/Characteristic: Time Delay
  • Mounting: Clip
  • Indication System: Yes
  • Indication System Type: Visual Indicator
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: PolyTube

Product Dimensions

  • Product Weight: 0.012 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.5 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.13 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Sell Pack Height: 2.12 in

Overview

UPC 78200176743
Family Brand Name Ferraz Shawmut
Item Long Description GFN midget indicating fuses are available in 34 ratings from 1/10A through 30A. These time-delay fuses have built-in blown fuse indicators which pop out at the end of the fuse to visually indicate when the fuse has operated. Indicators may be used to trip a switch for remote as well as visual indication. (Not for Branch Circuit Protection).
GTiN 00782001767433
Length 1.5 in
Type Supplemental Protection
Diameter 0.41 in
Terminal Type Ferrule
Applications For supplemental protection of circuits where time-delay and blown fuse indication are required, such as solenoid circuits or control circuits.
Mounting Type Clip
Weight 0.012 lb
Pkg Qty 10
Class M
Insulation Material PolyTube
TC Connection Ferrule
Amperage 10 Amp
Interrupt Rating 0.2 kA
Indicator Visual Indicator
Terminal Material Tin-Plated Copper
Rated Voltage AC 250 V
Fuse Class Midget
Voltage 250 VAC
