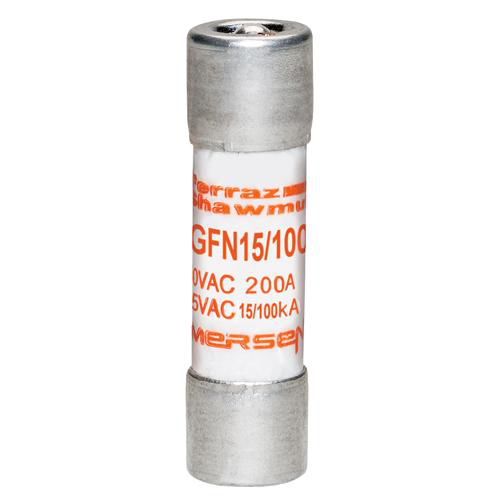

FERRAZ GFN15/100 70133-FUSE 250V 15
Product image thumbnail 0
Product image thumbnail 1
$26.47/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # GFN15/100
North Coast Part # 603427

Features

  • Pin indicator provides visual indication of open fuse or actuates switch for remote signaling
  • Numerous ratings for a wide variety of applications
  • 12 second time-delay at 200% rating
  • Can be used with UltraSafe™ fuse holders (1/10 - 10A)
  • 1 1/2" x 13/32" (10 mm x 38 mm) dimensions

Applications

  • For supplemental protection of circuits where time-delay and blown fuse indication are required, such as solenoid circuits or control circuits.

Approvals & Standards

  • UL Listed to standard 248-14 (1/10 to 15A) File E33925
  • CSA Certified to Standard C22.2 No. 248.14 (1/10 to 15A)

Specifications

  • Rated voltage AC UL: 250 V
  • Ampere Rating: 0.15 A
  • Fuse Class: Midget
  • Speed/Characteristic: Time Delay
  • Mounting: Clip
  • Indication System: Yes
  • Indication System Type: Visual Indicator
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: PolyTube

Product Dimensions

  • Product Weight: 0.012 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.5 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.13 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Sell Pack Height: 2.12 in

Overview

UPC 78200170133
Family Brand Name Ferraz Shawmut
GTiN 00782001701338
Length 1.5 in
Type Supplemental Protection
Diameter 0.41 in
Terminal Type Ferrule
Applications For supplemental protection of circuits where time-delay and blown fuse indication are required, such as solenoid circuits or control circuits.
Mounting Type Clip
Weight 0.012 lb
Pkg Qty 10
Class M
Insulation Material PolyTube
TC Connection Ferrule
Amperage 0.15 Amp
Interrupt Rating 0.2 kA
Indicator Visual Indicator
Terminal Material Tin-Plated Copper
Rated Voltage AC 250 V
Fuse Class Midget
Voltage 250 VAC
