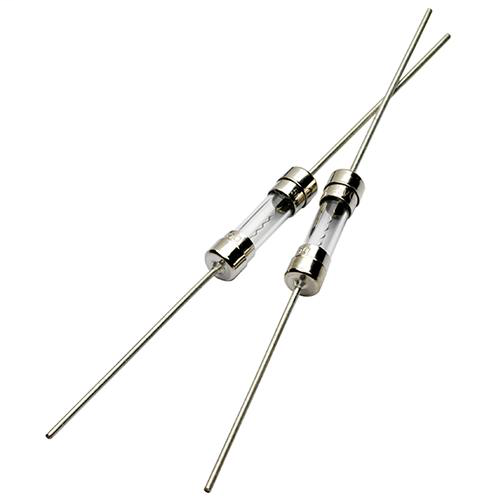

FERRAZ GGM-V5 250V 5A 5X20MM FUSE
$3.54/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # GGM-V5
North Coast Part # 603499

Features

  • Glass body
  • Fast-acting
  • 5 mm x 20 mm
  • 1-1/2" Axial leads

Applications

  • Electronic circuits

Approvals & Standards

  • 1/16A through 3A, 250VAC, UL Listed and CSA Certified
  • 4A through 8A, 125VAC, UL Listed and CSA Certified
  • 10A and 15A, 250VAC, UL Recognized

Specifications

  • Rated voltage AC UL: 125 V
  • Ampere Rating: 5 A
  • ROHS Compliant: Yes
  • Fuse Class: Supplemental
  • Speed/Characteristic: Fast-Acting
  • Connection/Terminal Type: Soldered connection
  • Body/Insulating Material: Glass

Product Dimensions

  • Product Weight: 0.01 lb
  • Product Diameter: 0.2 in
  • Product Length: 3.83 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.105 lb
  • Sell Pack Width: 5 in
  • Sell Pack Length: 3 in
  • Sell Pack Height: 0.03 in

Categories

Overview

UPC 78200176730
Family Brand Name Ferraz Shawmut
GTiN 00782001767303
Length 3.83 in
Type 5 X 20 mm miniature fuses
Diameter 0.2 in
Terminal Type Soldered Connection
Applications Electronic circuits
Weight 0.01 lb
Pkg Qty 10
Insulation Material Glass
TC Connection Axial Leads
Amperage 5 Amp
Interrupt Rating 10 kA
Rated Voltage AC 125 V
Fuse Class Supplemental
Voltage null
