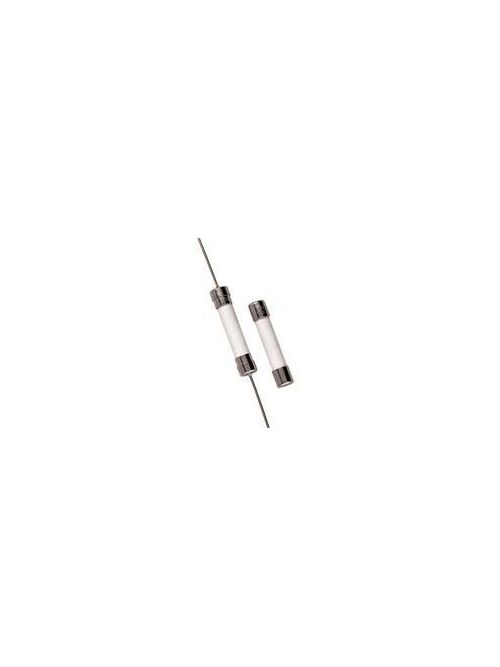

FERRAZ GSA-V1/8 250V 1/8A SMALL DIM
Product image thumbnail 0
Product image thumbnail 1
$13.02/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # GSA-V1/8
North Coast Part # 603522

Features

  • Ceramic body
  • Time-delay
  • 1/4" x 1-1/4"
  • 1-1/2" Axial leads

Applications

  • Electronic circuits

Approvals & Standards

  • 1/16A through 8A, 250VAC, UL Listed
  • 10, 12, 15A, 250V UL Recognized
  • 1/16A through 8A, 250VAC, CSA Certified
  • 10, 12, 15A, 250V CSA Recognized
  • 20A, 250VAC, 25 & 30A, 125VAC

Specifications

  • Rated voltage AC UL: 250 V
  • Ampere Rating: 0.125 A
  • ROHS Compliant: Yes
  • Fuse Class: Supplemental
  • Speed/Characteristic: Time Delay
  • Connection/Terminal Type: Soldered connection
  • Body/Insulating Material: Ceramic

Product Dimensions

  • Product Weight: 0.01 lb
  • Product Diameter: 0.25 in
  • Product Length: 4.25 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.105 lb
  • Sell Pack Width: 5 in
  • Sell Pack Length: 3 in
  • Sell Pack Height: 0.15 in

Overview

UPC 78200181050
Family Brand Name Ferraz Shawmut
GTiN 00782001810504
Length 4.25 in
Type 1/4 X 1-1/4
Diameter 0.25 in
Terminal Type Soldered Connection
Applications Electronic circuits - High currents (microwave ovens)
Weight 0.01 lb
Pkg Qty 10
Insulation Material Ceramic
TC Connection Axial Leads
Amperage 0.125 Amp
Interrupt Rating 0.035 kA
Rated Voltage AC 250 V
Fuse Class Supplemental
Voltage 250 VAC
