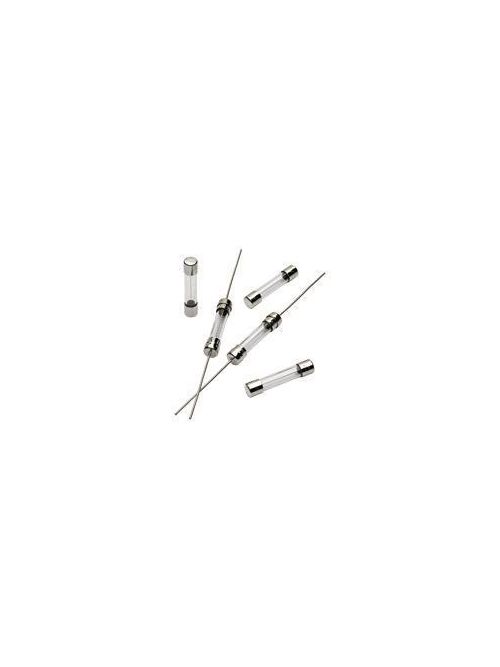

FERRAZ GSB-V16/100 250V 16/100A SMA
Product image thumbnail 0
Product image thumbnail 1
$5.09/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # GSB-V16/100
North Coast Part # 603567

Features

  • Glass body
  • Fast-acting
  • 5 mm x 20 mm
  • 1-1/2" Axial leads

Applications

  • Electronic circuits

Approvals & Standards

  • 1/16A through 10A, 250VAC, UL and CSA Recognized
  • 1/16A through 6-3/10A, 250VAC, SEMKO Approved
  • 1/16A through 6-3/10A, 250VAC, VDE Approved
  • IEC-127-2 Standard Sheet 2*

Specifications

  • Rated voltage AC UL: 250 V
  • Ampere Rating: 0.16 A
  • ROHS Compliant: Yes
  • Fuse Class: Supplemental
  • Speed/Characteristic: Fast-Acting
  • Connection/Terminal Type: Soldered connection
  • Body/Insulating Material: Glass

Product Dimensions

  • Product Weight: 0.01 lb
  • Product Diameter: 0.2 in
  • Product Length: 3.83 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.105 lb
  • Sell Pack Width: 5 in
  • Sell Pack Length: 3 in
  • Sell Pack Height: 0.03 in

Overview

UPC 78200178003
Family Brand Name Ferraz Shawmut
GTiN 00782001780036
Length 3.83 in
Type 5 X 20 mm miniature fuses
Diameter 0.2 in
Terminal Type Soldered Connection
Applications Electronic circuits
Weight 0.01 lb
Pkg Qty 10
Insulation Material Glass
TC Connection Axial Leads
Amperage 0.16 Amp
Interrupt Rating 0.035 kA
Rated Voltage AC 250 V
Fuse Class Supplemental
Voltage 250 VAC
