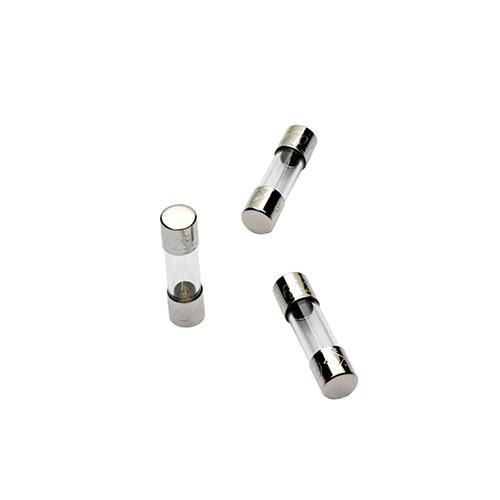

FERRAZ GSB1/4 250V 1/4A 5x20 SMALL
Product image thumbnail 0
Product image thumbnail 1
$4.44/ea
Usually ships within 8 to 12 Days
Adding...
Order in multiples of 5 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # GSB1/4
North Coast Part # 215968

Features

  • Glass body
  • Fast-acting
  • 5 mm x 20 mm

Applications

  • Electronic circuits

Approvals & Standards

  • 1/16A through 10A, 250VAC, UL and CSA Recognized
  • 1/16A through 6-3/10A, 250VAC, SEMKO Approved
  • 1/16A through 6-3/10A, 250VAC, VDE Approved
  • IEC-127-2 Standard Sheet 2*

Specifications

  • Rated voltage AC UL: 250 V
  • Ampere Rating: 0.25 A
  • ROHS Compliant: Yes
  • Fuse Class: Supplemental
  • Speed/Characteristic: Fast-Acting
  • Mounting: Clip
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: Glass

Product Dimensions

  • Product Weight: 0.01 lb
  • Product Diameter: 0.2 in
  • Product Length: 0.79 in

Packaging Dimensions

  • Sell Pack Quantity: 5 Each
  • Sell Pack Weight: 0.052 lb
  • Sell Pack Width: 1.5 in
  • Sell Pack Length: 1.25 in
  • Sell Pack Height: 0.25 in

Overview

UPC 78200176477
Family Brand Name Ferraz Shawmut
GTiN 00782001764777
Length 0.79 in
Type Miniature, Fast-Acting
Diameter 0.2 in
Terminal Type Ferrule
Applications Electronic circuits
Mounting Type Clip
Weight 0.01 lb
Pkg Qty 5
Insulation Material Glass
Construction Glass
TC Connection Ferrule
Amperage 0.25 Amp
Blade Dimensions 5 x 20 mm
Interrupt Rating 0.035 kA
Used With Electronic Circuits
Rated Voltage AC 250 V
Fuse Class Supplemental
Voltage 250 VAC
