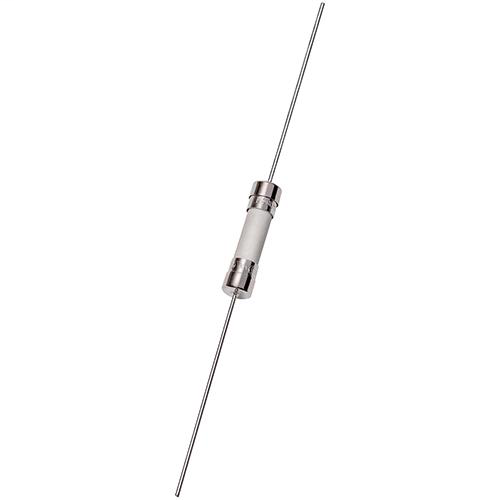

FERRAZ GSD-V1/8 250V 1/8A 5X20mm FA
$5.97/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # GSD-V1/8
North Coast Part # 603610

Features

  • Ceramic body
  • Fast-acting
  • 5 mm x 20 mm
  • 1-1/2" Axial leads

Applications

  • Electronic circuits

Approvals & Standards

  • 1/16A through 10A, 250VAC, UL & CSA Recognized
  • 1A through 6-3/10A, 250 VAC, SEMKO Approved
  • 1A through 6-3/10A, 250 VAC, VDE Approved
  • IEC 127-2 Standard Sheet 1*

Specifications

  • Rated voltage AC UL: 250 V
  • Ampere Rating: 0.125 A
  • ROHS Compliant: Yes
  • Fuse Class: Supplemental
  • Speed/Characteristic: Fast-Acting
  • Connection/Terminal Type: Soldered connection
  • Body/Insulating Material: Ceramic

Product Dimensions

  • Product Weight: 0.01 lb
  • Product Diameter: 0.2 in
  • Product Length: 3.83 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.105 lb
  • Sell Pack Width: 5 in
  • Sell Pack Length: 3 in
  • Sell Pack Height: 0.03 in

Categories

Overview

UPC 78200124475
Family Brand Name Ferraz Shawmut
GTiN 00782001244750
Length 3.83 in
Type 5 X 20 mm miniature fuses
Diameter 0.2 in
Terminal Type Soldered Connection
Applications Electronic circuits
Weight 0.01 lb
Pkg Qty 10
Insulation Material Ceramic
TC Connection Axial Leads
Amperage 0.125 Amp
Interrupt Rating 1.5 kA
Rated Voltage AC 250 V
Fuse Class Supplemental
Voltage null
