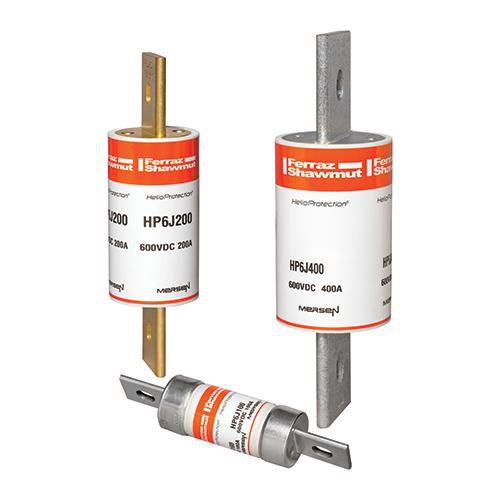

FERRAZ HP6J100 600 VDC 100A CLASS J
$141.94/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # HP6J100
North Coast Part # 664112

Features

  • Smallest footprint in the industry
  • UL class J dimensions
  • Low fault current interrupting capability
  • Durable construction for enhanced system longevity
  • Temperature cycle withstand capability
  • Guaranteed operation at temperature extremes
  • Industry‚Äôs first UL Listed Solution
  • Globally accepted

Applications

  • Re-combiner (sub-combiner, array combiner, master combiner) applications
  • Inverter DC input protection
  • Battery charge controllers

Approvals & Standards

  • UL Listed to Standard UL2579 File E333668
  • CSA Component Certified C22.2

Specifications

  • Rated voltage DC UL: 600 V
  • Ampere Rating: 100 A
  • ROHS Compliant: Yes
  • Fuse Class: Photovoltaic
  • Speed/Characteristic: gPV
  • Mounting: Clip or Bolted
  • AC Max I.R./Breaking Capacity: I1: 10 kA
  • Connection/Terminal Material: Silver-Plated Copper
  • Connection/Terminal Type: Blade
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.25 lb
  • Product Diameter: 1.08 in
  • Product Length: 4.62 in

Packaging Dimensions

  • Sell Pack Quantity: 5 Each
  • Sell Pack Weight: 1.31 lb
  • Sell Pack Width: 5.38 in
  • Sell Pack Length: 1.06 in
  • Sell Pack Height: 6 in

Categories

Overview

UPC 78200142662
Family Brand Name Ferraz Shawmut
GTiN 00782001426620
Length 4.62 in
Type Photovoltaic Fuses
Diameter 1.08 in
Terminal Type Blade
Applications Re-combiner (sub-combiner, array combiner, master combiner) Inverter DC input protection Battery charge controllers
Mounting Type Bolted,Clip
Weight 0.25 lb
Pkg Qty 5
Insulation Material GMG
TC Connection Blade
Amperage 100 Amp
Interrupt Rating 10 kA
Terminal Material Silver-Plated Copper
Sub Brand Helio Protection
Rated Voltage DC 600 V
Fuse Class Photovoltaic
Voltage null
