FERRAZ HP6J225 600VDC 225A CLASS J

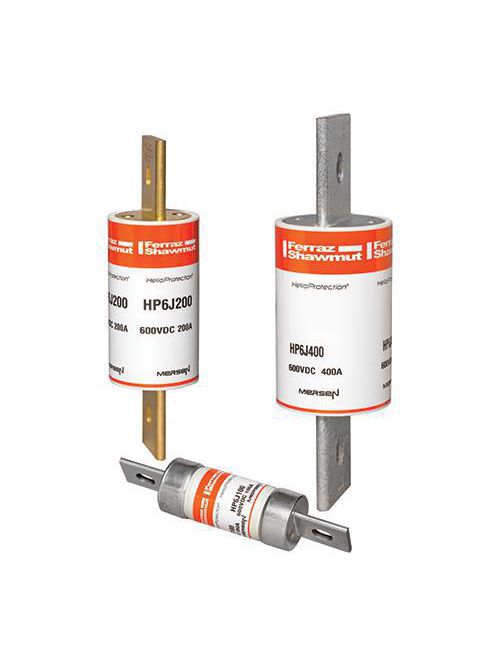

Product image thumbnail 0
Product image thumbnail 1
$684.05/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # HP6J225
North Coast Part # 668322

Features

  • Smallest footprint in the industry
  • UL class J dimensions
  • Low fault current interrupting capability
  • Durable construction for enhanced system longevity
  • Temperature cycle withstand capability
  • Guaranteed operation at temperature extremes
  • Industry‚Äôs first UL Listed Solution
  • Globally accepted

Applications

  • Re-combiner (sub-combiner, array combiner, master combiner) applications
  • Inverter DC input protection
  • Battery charge controllers

Approvals & Standards

  • UL Listed to Standard UL2579 File E333668
  • CSA Component Certified C22.2

Specifications

  • Rated voltage DC UL: 600 V
  • Ampere Rating: 225 A
  • ROHS Compliant: Yes
  • Fuse Class: Photovoltaic
  • Speed/Characteristic: gPV
  • Mounting: Clip or Bolted
  • AC Max I.R./Breaking Capacity: I1: 10 kA
  • Connection/Terminal Material: Silver-Plated Copper
  • Connection/Terminal Type: Blade
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 1.75 lb
  • Product Diameter: 2.13 in
  • Product Length: 7.13 in

Packaging Dimensions

  • Sell Pack Quantity: 1 Each
  • Sell Pack Weight: 1.84 lb
  • Sell Pack Width: 2.12 in
  • Sell Pack Length: 7.25 in
  • Sell Pack Height: 2.12 in

Overview

UPC 78200142668
Family Brand Name Ferraz Shawmut
GTiN 00782001426682
Length 7.13 in
Type Photovoltaic Fuses
Diameter 2.13 in
Terminal Type Blade
Applications Re-combiner (sub-combiner, array combiner, master combiner) Inverter DC input protection Battery charge controllers
Mounting Type Bolted,Clip
Weight 1.75 lb
Pkg Qty 1
Insulation Material GMG
TC Connection Blade
Amperage 225 Amp
Interrupt Rating 10 kA
Terminal Material Silver-Plated Copper
Sub Brand Helio Protection
Rated Voltage DC 600 V
Fuse Class Photovoltaic
Voltage 600 VDC
