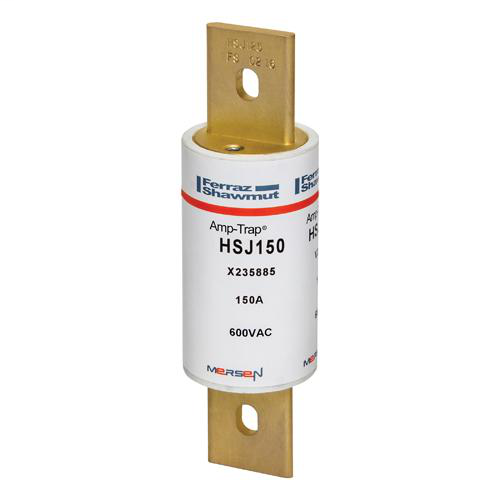

Ferraz Shawmut HSJ150 150 Amp 600 VAC 500 VDC Class J High Speed Fuse
Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # HSJ150
North Coast Part # 161520


  • Optimized over-load capability for withstanding elevated levels of current during electronic motor controller starts
  • Low I2t (low thermal energy)
  • Excellent cycling ability for frequent starts/stops without nuisance opening


  • Branch circuits
  • Control panels
  • Electronic motor controllers
  • Phase controllers
  • Drives
  • Soft-starters
  • Solid state relays


  • Sell Pack Height: 6 in
  • Product Weight: 0.8 lb
  • Product Diameter: 1.62 in
  • Product Length: 5.75 in
  • Mounting: Clip
  • Ampere Rating: 150 A
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • ROHS Compliant: Yes
  • Sell Pack Weight: 0.84 lb
  • Sell Pack Width: 1.69 in
  • Sell Pack Length: 1.69 in
  • Body/Insulating Material: GMG
  • Connection/Terminal Type: Blade
  • Sell Pack Quantity: 1 Each
  • Speed/Characteristic: High Speed
  • Fuse Class: Class J
  • Connection/Terminal Material: Brass
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 500 V

Approvals & Standards

  • UL listed to standard 248-8 File E2137
  • CSA certified to standard C22.2 no. 248.8
  • DC listed to UL 248
  • Approvals & Standards


UPC 78200132963
Family Brand Name Ferraz Shawmut
GTiN 00782001329631
Length 5.75 in
Type North American Power Fuses
Diameter 1.62 in
Terminal Type Blade
Applications For Control Panels, Electronic Motor Controllers, Phase Controllers, Drives, Soft Starters, Solid State Relays
Mounting Type Clip
Weight 0.8 lb
Pkg Qty 1
Class J
Insulation Material GMG
TC Connection Blade
Amperage 150 Amp
Interrupt Rating 200 kA
Terminal Material Brass
Rated Voltage AC 600 V
Rated Voltage DC 500 V
Fuse Class Class J
