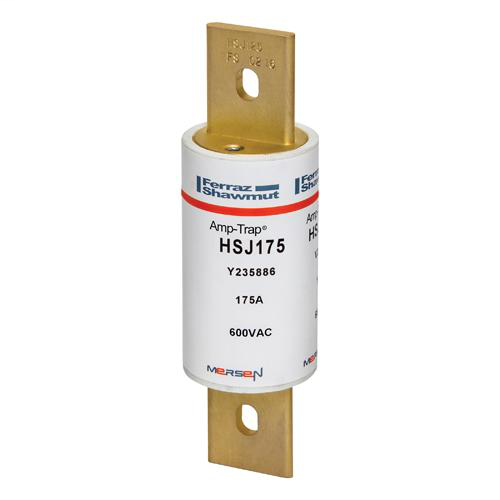

FERRAZ HSJ175 600V 175A CLASS J HS

$436.32/ea

Usually ships within 8 to 12 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Optimized over-load capability for withstanding elevated levels of current during electronic motor controller starts
Low I2t (low thermal energy)
Excellent cycling ability for frequent starts/stops without nuisance opening

UPC	78200132964
Family Brand Name	Ferraz Shawmut
Item Long Description	The High Speed Class J (HSJ) combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse into a single design. The HSJ can provide both branch circuit protection per NEC requirements, as well as very low I2t for protection of power semiconductors such as Diodes, SCRs, GTOs and SSRs.
GTiN	00782001329648
Length	5.75 in
Type	North American, High Speed
Diameter	1.62 in
Terminal Type	Blade
Applications	Control Panels, Electronic Motor Controllers, Phase Controllers, Drives, Soft-Starters, Solid State Relays
Mounting Type	Clip
Weight	0.8 lb
Pkg Qty	1
Class	J
Insulation Material	GMG
TC Connection	Blade
Amperage	175 Amp
Interrupt Rating	200 kA
Terminal Material	Brass
Rated Voltage AC	600 V
Rated Voltage DC	500 V
Fuse Class	Class J
Voltage	600 VAC
