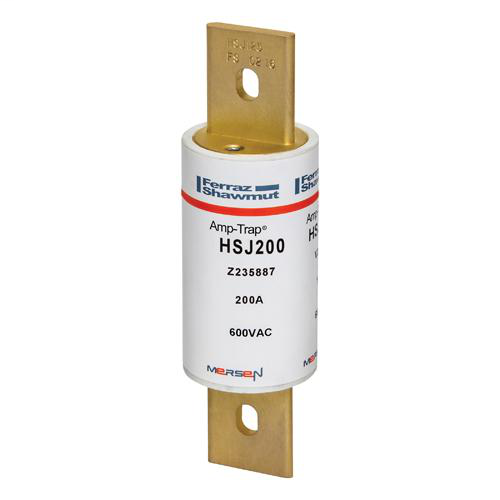

FERRAZ HSJ200 600V 200A CLASS J HS
$331.60/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # HSJ200
North Coast Part # 335074

Features

  • Optimized over-load capability for withstanding elevated levels of current during electronic motor controller starts
  • Low I2t (low thermal energy)
  • Excellent cycling ability for frequent starts/stops without nuisance opening

Applications

  • Branch circuits
  • Control panels
  • Electronic motor controllers
  • Phase controllers
  • Drives
  • Soft-starters
  • Solid state relays

Specifications

  • Sell Pack Height: 6 in
  • Product Weight: 0.8 lb
  • Product Diameter: 1.62 in
  • Product Length: 5.75 in
  • Mounting: Clip
  • Ampere Rating: 200 A
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • ROHS Compliant: Yes
  • Sell Pack Weight: 0.84 lb
  • Sell Pack Width: 1.69 in
  • Sell Pack Length: 1.69 in
  • Body/Insulating Material: GMG
  • Connection/Terminal Type: Blade
  • Sell Pack Quantity: 1 Each
  • Speed/Characteristic: High Speed
  • Fuse Class: Class J
  • Connection/Terminal Material: Brass
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 500 V

Approvals & Standards

  • UL listed to standard 248-8 File E2137
  • CSA certified to standard C22.2 no. 248.8
  • DC listed to UL 248
  • Approvals & Standards

Categories

Overview

UPC 78200132965
Family Brand Name Ferraz Shawmut
GTiN 00782001329655
Length 5.75 in
Type High Speed
Diameter 1.62 in
Terminal Type Blade
Applications For Control Panels, Electronic Motor Controllers, Phase Controllers, Drives, Soft Starters, Solid State Relays
Mounting Type Clip
Weight 0.8 lb
Pkg Qty 1
Class J
Insulation Material GMG
Construction GMG
Contact Material Tin Plated Copper, Silver Plated Copper, Brass
TC Connection Blade
Amperage 200 Amp
Blade Dimensions 1-1/8 in dia x 5-3/4 in L
Interrupt Rating 200 kA at AC, 100 kA at DC
Terminal Material Brass
Rated Voltage AC 600 V
Rated Voltage DC 500 V
Fuse Class Class J
Voltage null
