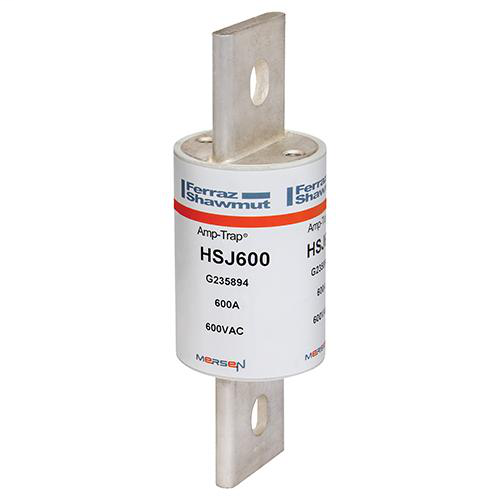

FERRAZ HSJ600 600V 600A CLASS J HS
$1,018.24/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # HSJ600
North Coast Part # 336610

Features

  • Optimized over-load capability for withstanding elevated levels of current during electronic motor controller starts
  • Low I2t (low thermal energy)
  • Excellent cycling ability for frequent starts/stops without nuisance opening

Applications

  • Branch circuits
  • Control panels
  • Electronic motor controllers
  • Phase controllers
  • Drives
  • Soft-starters
  • Solid state relays

Specifications

  • Sell Pack Height: 2.38 in
  • Product Weight: 3.2 lb
  • Product Diameter: 2.5 in
  • Product Length: 8 in
  • Mounting: Clip
  • Ampere Rating: 600 A
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • ROHS Compliant: Yes
  • Sell Pack Weight: 3.36 lb
  • Sell Pack Width: 2.5 in
  • Sell Pack Length: 8.75 in
  • Body/Insulating Material: GMG
  • Connection/Terminal Type: Blade
  • Sell Pack Quantity: 1 Each
  • Speed/Characteristic: High Speed
  • Fuse Class: Class J
  • Connection/Terminal Material: Silver-Plated Copper
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 500 V

Approvals & Standards

  • UL listed to standard 248-8 File E2137
  • CSA certified to standard C22.2 no. 248.8
  • DC listed to UL 248
  • Approvals & Standards

Overview

UPC 78200132975
Family Brand Name Ferraz Shawmut
GTiN 00782001329754
Length 8 in
Type High Speed
Diameter 2.5 in
Terminal Type Blade
Applications For Control Panels Electronic Motor Controllers Phase Controllers Drives Soft-Starters Solid State Relays
Mounting Type Clip
Weight 3.2 lb
Pkg Qty 1
Class J
Insulation Material GMG
TC Connection Blade
Amperage 600 Amp
Interrupt Rating 200 kA
Terminal Material Silver-Plated Copper
Rated Voltage AC 600 V
Rated Voltage DC 500 V
Fuse Class Class J
