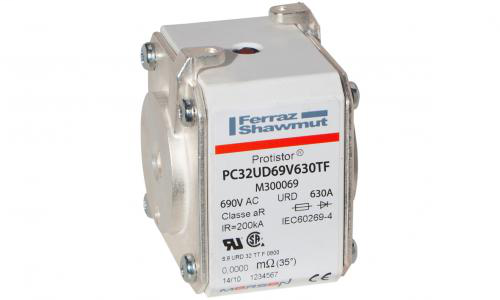

FERRAZ M300069 69URD32TTF0630
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$404.77/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # M300069
North Coast Part # 216341

Features

  • Multiple body sizes and terminals or blades combination
  • aR Class according to IEC 60269-4 and VDE 636-23
  • Very low I²t for improved semiconductor protection
  • Ultra fast acting
  • Current limiting
  • Superior cycling capability

Certifications

  • IEC 60269-4 Compliance
  • UL/CSA Recognized E76491
  • CCC GB 13539.4

Specifications

  • Ampere Rating: 630 A
  • Rated Voltage Ac Iec: 690 V
  • Rated Voltage Ac Ul: 700 V
  • Ac Max I R Breaking Capacity I1: 200 kA
  • Clearing I2T At Rated Voltage: 310 kA²s
  • Melting I2T: 54 kA²s
  • Power Dissipation At Rated Current Value: 95 W
  • Country Of Origin: FR
  • Product Line: Protistor® size 32 aR, 450 to 690VAC (IEC) / 700VAC (UL)
  • Product Brand: Protistor®
  • Body Insulating Material: Ceramic
  • Connection Terminal Material: Silver-Plated Brass
  • Connection Terminal Type: End Contact with Threaded Holes
  • Fuse Size: 32
  • Speed Characteristic: aR
  • Mounting: Bolted

Overview

UPC 78200124173
Family Brand Name Ferraz Shawmut
Item Long Description The 690/700V Protistor fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.The Protistor have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower It and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
GTiN 03605340322989
Length 1.99 in
Width 2.32 in
Terminal Type End Contact With Threaded Holes
Mounting Type Bolted
Height 2.56 in
Weight 1.204 lb
Pkg Qty 3
Insulation Material Ceramic
Amperage 630 Amp
Indicator Striker
Terminal Material Silver-Plated Brass
Rated Voltage AC 700 V
Voltage 700 Volt
Country of Origin France
