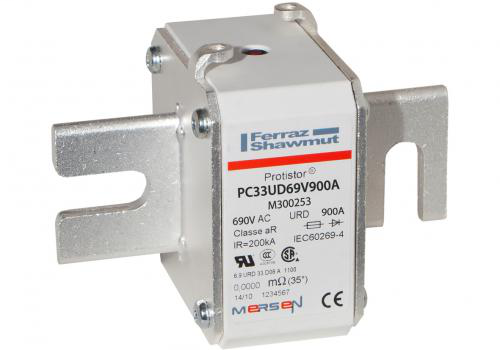

FERRAZ M300253 69URD33D08A0900

Features

• Multiple body sizes and terminals or blades combination
• aR Class according to IEC 60269-4 and VDE 636-23
• Very low I²t for improved semiconductor protection
• Ultra fast acting
• Current limiting
• Superior cycling capability

Applications

• Protection of inverters, motor drives, UPS systems and similar 690V or less equipments.

Approvals & Standards

• IEC 60269-4 Compliance
• UL/CSA Recognized E76491
• CCC 1359.4

Specifications

• Rated voltage AC UL: 700 V
• Rated voltage AC IEC: 690 V
• Ampere Rating: 900 A
• Speed/Characteristic: aR
• Fuse Size: 33
• Mounting: Bolted
• Clearing I2t At Rated Voltage: 770 kA²s
• Melting I2t: 130 kA²s
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Power Dissipation at Rated Current Value: 135 W
• Design Details: Standard Terminal
• Indication System: Yes
• Indication System Type: Striker
• Connection/Terminal Material: Silver-Plated Copper
• Connection/Terminal Type: DIN Type Blades
• Body/Insulating Material: Ceramic

Product Dimensions

• Product Weight: 1.791 lb
• Product Width: 2.87 in
• Product Length: 4.33 in
• Product Height: 3.09 in

Packaging Dimensions

• Sell Pack Quantity: 3 EACH
• Sell Pack Weight: 5.372 lb
• Sell Pack Width: 5.71 in
• Sell Pack Length: 9.84 in
• Sell Pack Height: 3.54 in
