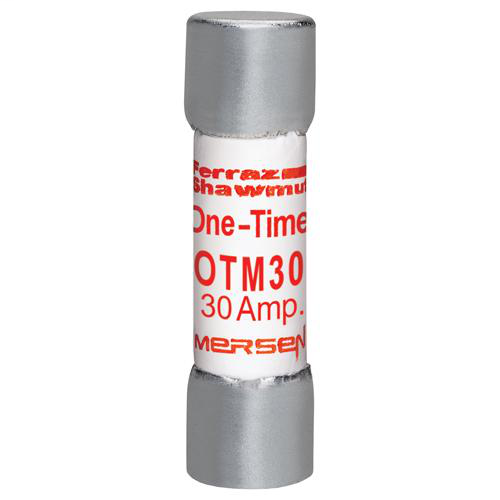

Ferraz Shawmut OTM30 13/32 x 1-1/2 Inch 30 Amp 250 Volt Fast Acting Midget Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4.62/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # OTM30
North Coast Part # 210489

Features

  • Low cost and fully rated for economy without compromise
  • Can be used with UltraSafeā„¢ fuse holders
  • 1 1/2" x 13/32" (10 mm x 38 mm) dimensions

Applications

  • Supplemental protection of circuits up to 250VAC and 10kA

Approvals & Standards

  • UL Listed to standard 248-14, File E33925
  • CSA Certified to Standard C22.2 No. 248.14

Specifications

  • Rated voltage AC UL: 250 V
  • Ampere Rating: 30 A
  • ROHS Compliant: Yes
  • Fuse Class: Midget
  • Speed/Characteristic: Fast-Acting
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 10 kA
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: Paper

Product Dimensions

  • Product Weight: 0.012 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.5 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.13 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Sell Pack Height: 2.12 in

Overview

Family Brand Name Ferraz Shawmut
Product UPC 78200170515
GTiN 00782001705152
Length 1-1/2 Inch
Type Supplemental Protection
Diameter 0.41 in
Terminal Type Ferrule
Applications For Supplemental Protection of Circuits up to 250 VAC and 10 kA
Mounting Type Clip
Weight 0.012 lb
Pkg Qty 10
Class M
Insulation Material Paper
TC Connection Ferrule
Amperage 30 Amp
Blade Dimensions 10 x 38 mm
Interrupt Rating 10 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 250 V
Fuse Class Midget
Voltage 250 VAC
