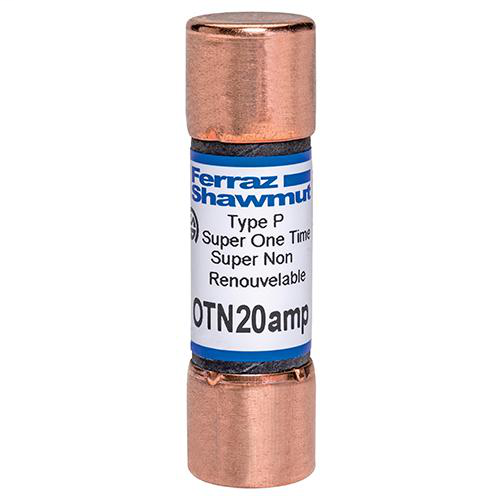

FERRAZ OTN20 ONETIME 250V CLASS H
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$11.27/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # OTN20
North Coast Part # 603733

Features

  • Easy to read imprint label for quick recognition and replacement
  • Low cost for high protection value

Applications

  • Feeders
  • Branch circuits
  • Resistive heating
  • Residential and small commercial installations

Approvals & Standards

  • UL Listed to Standard 248-9 File E2137
  • CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.)
  • Self-certified for DC per UL248

Specifications

  • Rated voltage AC UL: 250 V
  • Ampere Rating: 20 A
  • Fuse Class: Class K5
  • Speed/Characteristic: Fast-Acting
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 10 kA
  • Connection/Terminal Material: Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: Paper

Product Dimensions

  • Product Weight: 0.04 lb
  • Product Diameter: 0.56 in
  • Product Length: 2 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.42 lb
  • Sell Pack Width: 2.06 in
  • Sell Pack Length: 1.19 in
  • Sell Pack Height: 3 in

Overview

UPC 06893883101
Family Brand Name Ferraz Shawmut
Item Long Description One-Time OT and OTN general purpose fuses provide low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OT and OTN fuses will safely interrupt available short-circuit currents up to 50,000 amperes in all ratings. OT and OTN fuses are not rejection fuses and care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses. OTN(15-60) satisfy the Canadian electrical code requirement for Type P low melting-point, non-time-delay fuses.
GTiN 00068938831011
Length 2 in
Type Non Time-Delay, Type P
Diameter 0.56 in
Terminal Type Ferrule
Mounting Type Clip
Weight 0.04 lb
Pkg Qty 10
Class H
Insulation Material Paper
Amperage 20 Amp
Blade Dimensions 14 x 51 mm
Interrupt Rating 10 kA, 50 kA
Terminal Material Copper
Rated Voltage AC 250 V
Fuse Class Class H
Voltage 250 VAC
