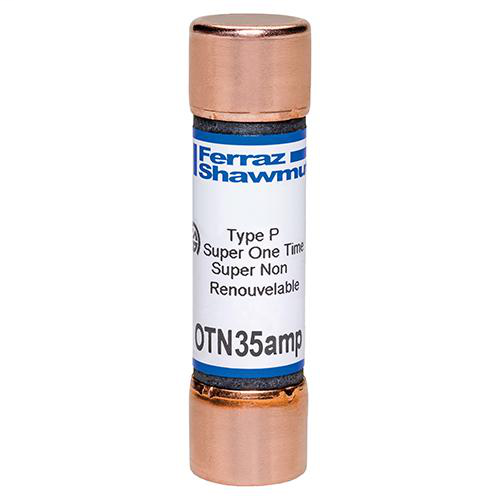

FERRAZ OTN35 ONETIME 250V CLASS H

$15.63/ea

Usually ships within 8 to 12 Days

Adding...

Already a Customer? Log in to view your pricing

Features

UL Listed to Standard 248-9 File E2137
CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.)
Self-certified for DC per UL248

UPC	06893883104
Family Brand Name	Ferraz Shawmut
Item Long Description	One-Time OT and OTN general purpose fuses provide low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OT and OTN fuses will safely interrupt available short-circuit currents up to 50,000 amperes in all ratings. OT and OTN fuses are not rejection fuses and care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses. OTN(15-60) satisfy the Canadian electrical code requirement for Type P low melting-point, non-time-delay fuses.
GTiN	00068938831042
Length	3 in
Type	Canadian, Fast Acting
Diameter	0.81 in
Terminal Type	Ferrule
Applications	For Feeders, Branch Circuits, Resistive Heating, Residential and Small Commercial Installations
Mounting Type	Clip
Weight	0.09 lb
Pkg Qty	10
Class	H
Insulation Material	Paper
Construction	Paper
Contact Material	Copper
Amperage	35 Amp
Blade Dimensions	0.81 in dia x 3 in L
Interrupt Rating	50 kA
Terminal Material	Copper
Rated Voltage AC	250 V
Fuse Class	Class K5
