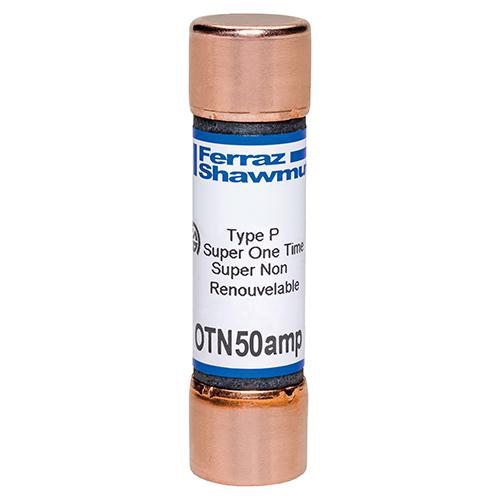

FERRAZ OTN50 ONETIME 250V CLASS H
$9.43/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # OTN50
North Coast Part # 603737

Features

  • Easy to read imprint label for quick recognition and replacement
  • Low cost for high protection value

Applications

  • Feeders
  • Branch circuits
  • Resistive heating
  • Residential and small commercial installations

Specifications

  • Sell Pack Height: 4.25 in
  • Sell Pack Width: 3.12 in
  • Product Weight: 0.09 lb
  • Body/Insulating Material: Paper
  • Speed/Characteristic: Fast-Acting
  • Ampere Rating: 50 A
  • Sell Pack Weight: 0.9 lb
  • Fuse Class: Class K5
  • Connection/Terminal Material: Copper
  • Rated voltage AC UL: 250 V
  • Product Diameter: 0.81 in
  • Mounting: Clip
  • Sell Pack Quantity: 10 Each
  • Connection/Terminal Type: Ferrule
  • Product Length: 3 in
  • AC Max I.R./Breaking Capacity: I1: 10 kA
  • Sell Pack Length: 1.69 in

Approvals & Standards

  • UL Listed to Standard 248-9 File E2137
  • CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.)
  • Self-certified for DC per UL248
  • Approvals & Standards

Categories

Overview

UPC 06893883107
Family Brand Name Ferraz Shawmut
GTiN 00068938831073
Length 3 in
Type Non Time-Delay, Type P, General Purpose
Diameter 0.81 in
Terminal Type Ferrule
Applications For Feeders, Branch Circuits, Resistive Heating, Residential and Small Commercial Installations
Mounting Type Clip
Weight 0.09 lb
Pkg Qty 10
Class H
Insulation Material Paper
Amperage 50 Amp
Blade Dimensions 13/16 in dia x 3 in L
Interrupt Rating 50 kA
Terminal Material Copper
Rated Voltage AC 250 V
Fuse Class Class K5
Voltage null
