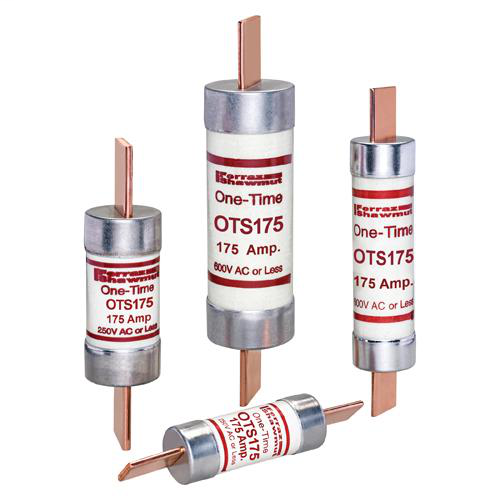

FERRAZ OTS175 600V 175A 9 5/8x1 13/

Features

• Easy to read imprint label for quick recognition and replacement
• Low cost for high protection value

Applications

• Feeders
• Branch circuits
• Resistive heating
• Residential and small commercial installations

Approvals & Standards

• UL Listed to Standard 248-9 File E2137
• CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.)
• Self-certified for DC per UL248

Specifications

• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 300 V
• Ampere Rating: 175 A
• ROHS Compliant: Yes
• Fuse Class: Class K5
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Blade
• Body/Insulating Material: PolyTube

Product Dimensions

• Product Weight: 1.54 lb
• Product Diameter: 1.81 in
• Product Length: 9.63 in

Packaging Dimensions

• Sell Pack Quantity: 1 Each
• Sell Pack Weight: 1.62 lb
• Sell Pack Width: 1.94 in
• Sell Pack Length: 1.94 in
• Sell Pack Height: 10 in
