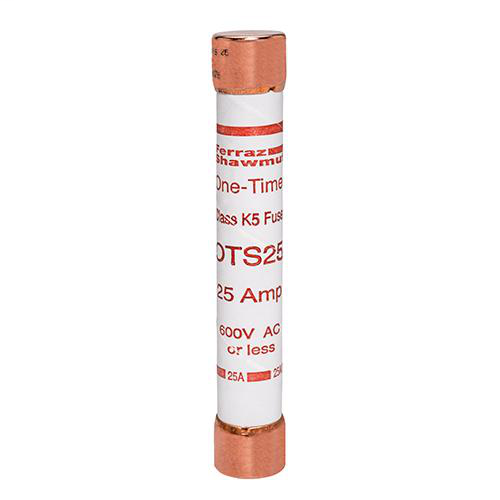

Ferraz Shawmut OTS25 13/16 x 5 Inch 25 Amp 600 Volt Class K5 General Purpose Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$16.05/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # OTS25
North Coast Part # 215484

Features

  • Easy to read imprint label for quick recognition and replacement
  • Low cost for high protection value

Applications

  • Feeders
  • Branch circuits
  • Resistive heating
  • Residential and small commercial installations

Specifications

  • Sell Pack Height: 1.75 in
  • Product Weight: 0.11 lb
  • Product Diameter: 0.81 in
  • Product Length: 5 in
  • Mounting: Clip
  • Ampere Rating: 25 A
  • AC Max I.R./Breaking Capacity: I1: 50 kA
  • ROHS Compliant: Yes
  • Sell Pack Weight: 1.16 lb
  • Sell Pack Width: 4.12 in
  • Sell Pack Length: 5.12 in
  • Body/Insulating Material: Paper
  • Connection/Terminal Type: Ferrule
  • Sell Pack Quantity: 10 Each
  • Speed/Characteristic: Fast-Acting
  • Fuse Class: Class K5
  • Connection/Terminal Material: Copper
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 300 V

Approvals & Standards

  • UL Listed to Standard 248-9 File E2137
  • CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.)
  • Self-certified for DC per UL248
  • Approvals & Standards

Overview

UPC 78200170073
Family Brand Name Ferraz Shawmut
GTiN 00782001700737
Length 5 in
Type North American Power Fuses
Diameter 0.81 in
Terminal Type Ferrule
Applications Feeders Resistive Heating Residential and Small Commercial Installations
Mounting Type Clip
Weight 0.11 lb
Pkg Qty 10
Class K-5
Insulation Material Paper
TC Connection Ferrule
Amperage 25 Amp
Interrupt Rating 50 kA
Terminal Material Copper
Rated Voltage AC 600 V
Rated Voltage DC 300 V
Fuse Class Class K5
