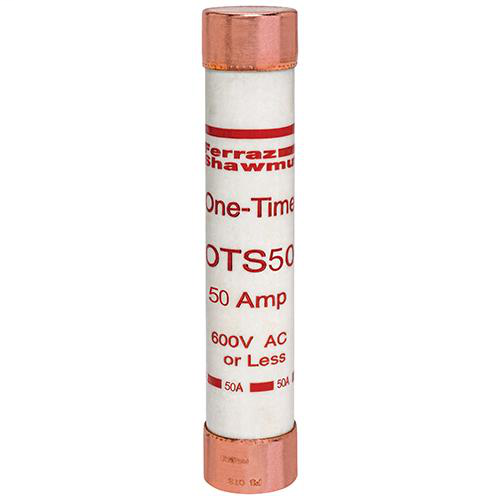

Ferraz Shawmut OTS50 1-1/16 x 5-1/2 Inch 50 Amp 600 Volt Class K5 General Purpose Fuse
Product image thumbnail 0
Product image thumbnail 1
$24.87/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # OTS50
North Coast Part # 215671

Features

  • Easy to read imprint label for quick recognition and replacement
  • Low cost for high protection value

Applications

  • Feeders
  • Branch circuits
  • Resistive heating
  • Residential and small commercial installations

Approvals & Standards

  • UL Listed to Standard 248-9 File E2137
  • CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.)
  • Self-certified for DC per UL248

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 300 V
  • Ampere Rating: 50 A
  • ROHS Compliant: Yes
  • Fuse Class: Class K5
  • Speed/Characteristic: Fast-Acting
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 50 kA
  • Connection/Terminal Material: Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: PolyTube

Product Dimensions

  • Product Weight: 0.23 lb
  • Product Diameter: 1.06 in
  • Product Length: 5.5 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 2.42 lb
  • Sell Pack Width: 2.19 in
  • Sell Pack Length: 5.5 in
  • Sell Pack Height: 5.62 in

Overview

UPC 78200170078
Family Brand Name Ferraz Shawmut
GTiN 00782001700782
Length 5.5 in
Type North American Power Fuses
Diameter 1.06 in
Terminal Type Ferrule
Applications Feeders Resistive Heating Residential and Small Commercial Installations
Mounting Type Clip
Weight 0.23 lb
Pkg Qty 10
Class K-5
Insulation Material PolyTube
TC Connection Ferrule
Amperage 50 Amp
Blade Dimensions 1-1/16 in dia x 5-1/2 in L
Interrupt Rating 50 kA
Terminal Material Copper
Rated Voltage AC 600 V
Rated Voltage DC 300 V
Fuse Class Class K5
Voltage 600 VAC
