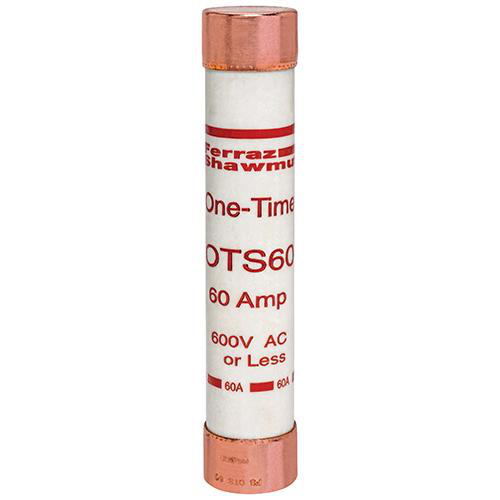

Ferraz Shawmut OTS60 1-1/16 x 5-1/2 Inch 60 Amp 600 Volt Class K5 General Purpose Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # OTS60
North Coast Part # 215760


  • Easy to read imprint label for quick recognition and replacement
  • Low cost for high protection value


  • Feeders
  • Branch circuits
  • Resistive heating
  • Residential and small commercial installations

Approvals & Standards

  • UL Listed to Standard 248-9 File E2137
  • CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.)
  • Self-certified for DC per UL248


  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 300 V
  • Ampere Rating: 60 A
  • ROHS Compliant: Yes
  • Fuse Class: Class K5
  • Speed/Characteristic: Fast-Acting
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 50 kA
  • Connection/Terminal Material: Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: PolyTube

Product Dimensions

  • Product Weight: 0.23 lb
  • Product Diameter: 1.06 in
  • Product Length: 5.5 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 2.42 lb
  • Sell Pack Width: 2.19 in
  • Sell Pack Length: 5.5 in
  • Sell Pack Height: 5.62 in


UPC 78200170080
Family Brand Name Ferraz Shawmut
Item Long Description One-Time OTS general purpose fuses provide low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OTS fuses will safely interrupt available short circuit currents up to 50,000 amperes in all ratings. OTS fuses are not rejection fuses and care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses.
GTiN 00782001700805
Length 5.5 in
Type North American Power Fuses
Diameter 1.06 in
Terminal Type Ferrule
Applications For Feeders, Resistive Heating, Residential and Small Commercial Installations
Mounting Type Clip
Weight 0.23 lb
Pkg Qty 10
Class K-5
Insulation Material PolyTube
TC Connection Ferrule
Amperage 60 Amp
Interrupt Rating 50 kA
Terminal Material Copper
Rated Voltage AC 600 V
Rated Voltage DC 300 V
Fuse Class Class K5
Voltage 600 VAC
