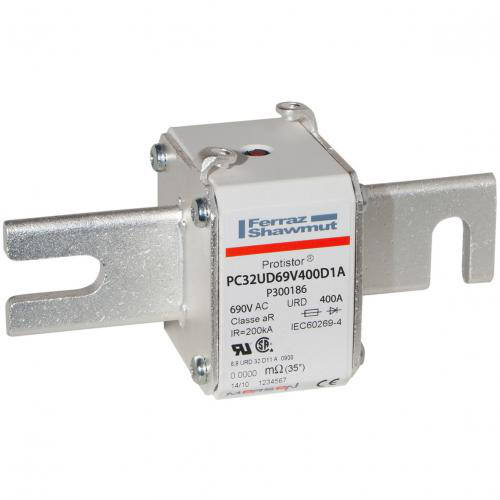

FERRAZ P300186 69URD32D11A0400
Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # P300186
North Coast Part # 428407


  • Multiple body sizes and terminals or blades combination
  • aR Class according to IEC 60269-4 and VDE 636-23
  • Very low I²t for improved semiconductor protection
  • Ultra fast acting
  • Current limiting
  • Superior cycling capability


  • Protection of inverters, motor drives, UPS systems and similar 690V or less equipments.


  • Sell Pack Height: 3.07 in
  • Product Weight: 1.242 lb
  • Product Length: 5.3 in
  • Mounting: Bolted
  • Clearing I2t At Rated Voltage: 90 kA²s
  • Product Width: 2.32 in
  • Ampere Rating: 400 A
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • ROHS Compliant: Yes
  • Rated voltage AC IEC: 690 V
  • Product Height: 2.56 in
  • Power Dissipation at Rated Current Value: 75 W
  • Melting I2t: 15 kA²s
  • Indication System: Yes
  • Catalogue No.: PC32UD69V400D1A
  • Sell Pack Width: 5.71 in
  • Sell Pack Length: 7.68 in
  • Body/Insulating Material: Ceramic
  • Fuse Size: 32
  • Connection/Terminal Type: DIN Type Blades
  • Sell Pack Quantity: 3 EACH
  • Indication System Type: Striker
  • Speed/Characteristic: aR
  • Connection/Terminal Material: Silver-Plated Copper
  • Rated voltage AC UL: 700 V
  • Sell Pack Weight: 3.726 lb

Approvals & Standards

  • IEC 60269-4 Compliance
  • UL/CSA Recognized E76491
  • CCC GB 13539.4
  • Approvals & Standards



UPC 78200124154
Family Brand Name Ferzshaw
GTiN 03605340324501
Length 5.3 in
Width 2.32 in
Terminal Type DIN Type Blades
Mounting Type Bolted
Height 2.56 in
Weight 1.242 lb
Pkg Qty 3
Insulation Material Ceramic
Amperage 400 Amp
Indicator Striker
Terminal Material Silver-Plated Copper
Rated Voltage AC 690 V
