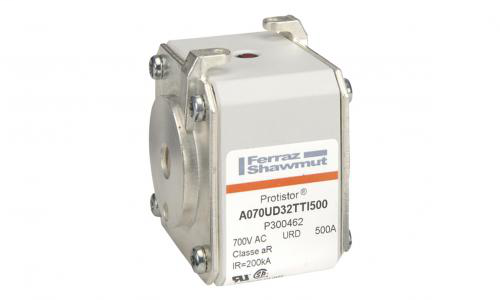

FERRAZ P300462 A070URD32TTI0500
$368.03/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # P300462
North Coast Part # 209560

Features

  • Multiple body sizes and terminals or blades combination
  • aR Class according to IEC 60269-4 and VDE 636-23
  • Very low I²t for improved semiconductor protection
  • Ultra fast acting
  • Current limiting
  • Superior cycling capability

Applications

  • Protection of inverters, motor drives, UPS systems and similar 690V or less equipments.

Specifications

  • Sell Pack Height: 3.54 in
  • Product Weight: 1.33 lb
  • Product Length: 1.99 in
  • Mounting: Bolted
  • Clearing I2t At Rated Voltage: 160 kA²s
  • Design Details: Standard Terminal
  • Product Width: 2.32 in
  • Ampere Rating: 500 A
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • ROHS Compliant: Yes
  • Rated voltage AC IEC: 690 V
  • Product Height: 2.56 in
  • Power Dissipation at Rated Current Value: 85 W
  • Melting I2t: 28 kA²s
  • Indication System: Yes
  • Catalogue No.: A070UD32TTI500
  • Sell Pack Width: 5.71 in
  • Sell Pack Length: 9.65 in
  • Body/Insulating Material: Ceramic
  • Fuse Size: 32
  • Connection/Terminal Type: End Contact with Threaded Holes
  • Sell Pack Quantity: 3 EACH
  • Indication System Type: Striker
  • Speed/Characteristic: aR
  • Connection/Terminal Material: Silver-Plated Brass
  • Rated voltage AC UL: 700 V
  • Sell Pack Weight: 3.99 lb

Approvals & Standards

  • IEC 60269-4 Compliance
  • UL/CSA Recognized E76491
  • CCC GB 13539.4
  • Approvals & Standards

Overview

UPC 78200124212
Family Brand Name Ferraz Shawmut
GTiN 03605340328837
Length 1.99 in
Width 2.32 in
Terminal Type End Contact With Threaded Holes
Mounting Type Bolted
Height 2.56 in
Weight 1.33 lb
Pkg Qty 3
Insulation Material Ceramic
Amperage 500 Amp
Indicator Striker
Terminal Material Silver-Plated Brass
Rated Voltage AC 700 V
