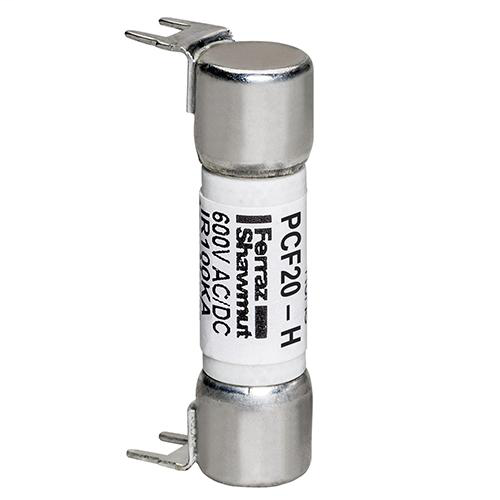

FERRAZ PCF20-H 90704-FUSEPC MOUNT
$37.40/ea
Usually ships within 8 to 12 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # PCF20-H
North Coast Part # 426739

Features

  • Fast-acting
  • PC board mount
  • Three mounting styles

Applications

  • Protection of main frame power boards, circuit breakers, components

Approvals & Standards

  • UL Recognized Components File E60314

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 600 V
  • Ampere Rating: 20 A
  • ROHS Compliant: Yes
  • Fuse Class: Midget
  • Speed/Characteristic: Fast-Acting
  • Mounting: PC Mount
  • AC Max I.R./Breaking Capacity: I1: 100 kA
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Double Hole Mount
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.02 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.53 in

Packaging Dimensions

  • Sell Pack Quantity: 100 Each
  • Sell Pack Weight: 2.1 lb
  • Sell Pack Width: 5.12 in
  • Sell Pack Length: 8.13 in
  • Sell Pack Height: 1.62 in

Overview

UPC 78200190704
Family Brand Name Ferzshaw
GTiN 00782001907044
Length 1.53 in
Type Supplemental Protection
Diameter 0.41 in
Terminal Type Double Hole Mount
Applications Protection of main frame power boards, circuit breakers, or other PCB components
Mounting Type PC Mount
Weight 0.02 lb
Pkg Qty 100
Class M
Insulation Material GMG
TC Connection Double Hole Mount
Amperage 20 Amp
Interrupt Rating 100 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Fuse Class Midget
