Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer Mersen

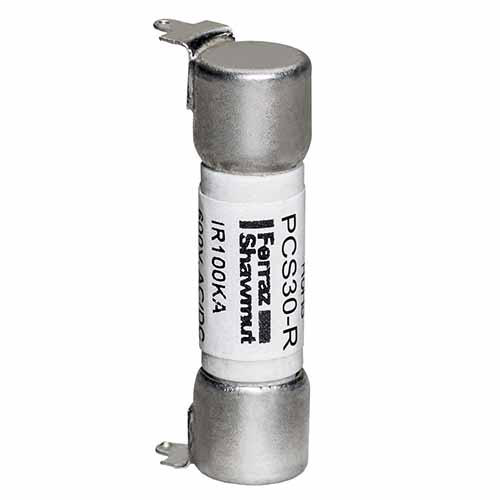

Mfg Catalog # PCS30-R
North Coast Part # 1019426


  • Extremely fast-acting
  • PC board mount

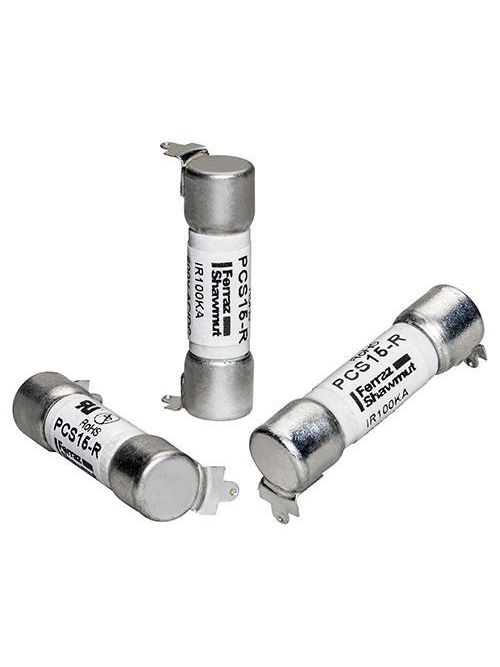

  • Three mounting styles


  • Protection of semiconductors, circuit breakers, critical components

Approvals & Standards

  • UL Recognized Components File E60314


  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 600 V
  • Ampere Rating: 30 A
  • ROHS Compliant: Yes
  • Fuse Class: Midget
  • Speed/Characteristic: Fast-Acting
  • Mounting: PC Mount
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Slot Mount
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.02 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.53 in

Packaging Dimensions

  • Sell Pack Quantity: 100 Each
  • Sell Pack Weight: 2.1 lb
  • Sell Pack Width: 5.12 in
  • Sell Pack Length: 8.13 in
  • Sell Pack Height: 1.62 in


UPC 78200114163
Family Brand Name Ferraz Shawmut
Item Long Description PCS series of semiconductor direct-mountable fuses address the need for electrical protection at the PC board. These fuses help PCB users/manufacturers reduce parts by eliminating clips and/or fuseholders and allowing automated assembly. PCS fuses are AC and DC rated and are extremely current-limiting. They will protect semiconductors, main frame boards, circuit breakers with low interrupting capabilities and other critical components. PCS fuses bring I2t protection, higher ampere, voltage and interrupting ratings and are UL Component Recognized.
GTiN 00782001141639
Length 1.53 in
Type Supplemental Protection
Diameter 0.41 in
Terminal Type Slot Mount
Applications Protection of main frame power boards, circuit breakers, or other PCB components
Mounting Type PC Mount
Weight 0.02 lb
Pkg Qty 100
Class M
Insulation Material GMG
TC Connection Slot Mount (Rectangular Holes)
Amperage 30 Amp
Interrupt Rating 200 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Fuse Class Midget
Voltage 600 VAC
