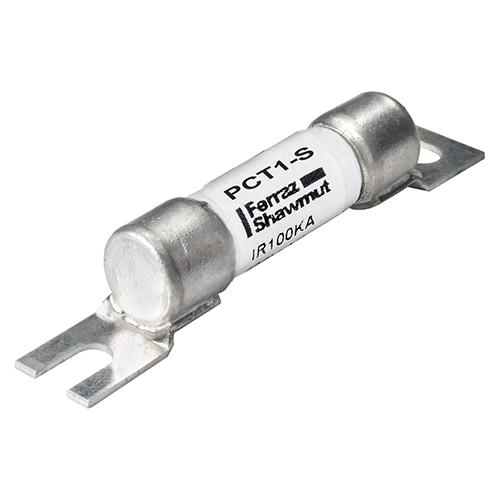

FERRAZ PCT1-S 90750-FUSEPC MOUNT
Product image thumbnail 0
Product image thumbnail 1
$44.55/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # PCT1-S
North Coast Part # 160680

Features

  • Time-delay
  • PC board mount
  • Three mounting styles

Applications

  • Protection of main frame power boards, circuit breakers, components

Approvals & Standards

  • UL Recognized Components File E60314

Specifications

  • Rated voltage AC UL: 500 V
  • Ampere Rating: 1 A
  • ROHS Compliant: Yes
  • Fuse Class: Midget
  • Speed/Characteristic: Time Delay
  • Mounting: PC Mount
  • AC Max I.R./Breaking Capacity: I1: 100 kA
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Surface Screw Mount
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.03 lb
  • Product Diameter: 0.41 in
  • Product Length: 2.38 in

Packaging Dimensions

  • Sell Pack Quantity: 100 Each
  • Sell Pack Weight: 3.15 lb
  • Sell Pack Width: 5 in
  • Sell Pack Length: 5.62 in
  • Sell Pack Height: 2.62 in

Categories

Overview

UPC 78200190750
Family Brand Name Ferzshaw
Item Long Description PCT series of time-delay direct-mountable fuses address the need for electrical protection at the PC board. These fuses help PCB users/manufacturers reduce parts by eliminating clips and/or fuseholders and allowing automated assembly. PCT fuses can be used for the protection of main frame power boards, small circuit breakers with low-interrupting capabilities and other critical components. PCF fuses bring greatly increased ampere, voltage and interrupting ratings to the board itself and are UL Component Recognized.
GTiN 00782001907501
Length 2.38 in
Type Supplemental Protection
Diameter 0.41 in
Terminal Type Surface Screw Mount
Applications Protection of main frame power boards, circuit breakers, or other PCB components
Mounting Type PC Mount
Weight 0.03 lb
Pkg Qty 100
Class M
Insulation Material GMG
TC Connection Surface Screw Mount
Amperage 1 Amp
Interrupt Rating 100 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 500 V
Fuse Class Midget
