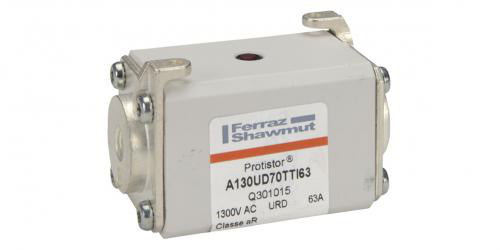

FERRAZ Q301015 A130URD70TTI0063
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$330.82/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # Q301015
North Coast Part # 68424

Features

  • Multiple body sizes and terminals or blades combination
  • aR Class according to VDE 636-23 and IEC 60269-4
  • Very low I²t for improved semiconductor protection
  • Ultra fast acting
  • Current limiting
  • Superior cycling capability

Certifications

  • IEC 60269-4 Compliance
  • UL/CSA Recognized E76491
  • CCC GB 13539.4

Specifications

  • Increased technical performances: higher ratings and reduction in volume and weight
  • Ampere Rating: 63 A
  • Rated Voltage Ac Iec: 1250 V
  • Rated Voltage Ac Ul: 1300 V
  • Ac Max I R Breaking Capacity I1: 200 kA
  • Clearing I2T At Rated Voltage: 1680 A²s
  • Melting I2T: 210 A²s
  • Power Dissipation At Rated Current Value: 26 W
  • Country Of Origin: FR,MX
  • Product Line: Protistor® size 70 aR, 1100 to 1250VAC (IEC) / 1300VAC (UL)
  • Product Brand: Protistor®
  • Body Insulating Material: Ceramic
  • Connection Terminal Material: Silver-Plated Brass
  • Connection Terminal Type: End Contact with Threaded Holes
  • Fuse Size: 70
  • Speed Characteristic: aR
  • Mounting: Bolted

Overview

UPC 78200123835
Family Brand Name Ferraz Shawmut
Item Long Description The 1250/1300V Protistor fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.The Protistor have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, GTO's and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower It and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
GTiN 03605340335491
Length 2.91 in
Width 1.57 in
Terminal Type End Contact With Threaded Holes
Mounting Type Bolted
Height 1.95 in
Weight 0.772 lb
Pkg Qty 3
Insulation Material Ceramic
Amperage 63 Amp
Indicator Striker
Terminal Material Silver-Plated Brass
Rated Voltage AC 1300 V
Voltage 1300 Volt
Country of Origin France,Mexico
