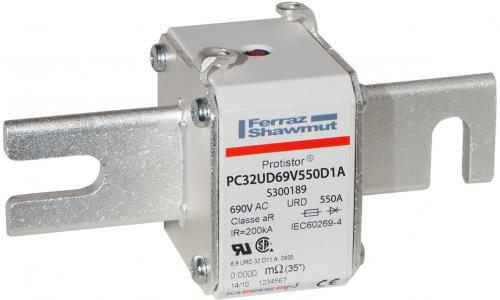

FERRAZ S300189 69URD32D11A0550

Features

• Multiple body sizes and terminals or blades combination
• aR Class according to IEC 60269-4 and VDE 636-23
• Very low I²t for improved semiconductor protection
• Ultra fast acting
• Current limiting
• Superior cycling capability

Applications

• Protection of inverters, motor drives, UPS systems and similar 690V or less equipments.

Specifications

• Sell Pack Height: 3.07 in
• Product Weight: 1.242 lb
• Product Length: 5.3 in
• Mounting: Bolted
• Clearing I2t At Rated Voltage: 215 kA²s
• Product Width: 2.32 in
• Ampere Rating: 550 A
• AC Max I.R./Breaking Capacity: I1: 200 kA
• ROHS Compliant: Yes
• Rated voltage AC IEC: 690 V
• Product Height: 2.56 in
• Power Dissipation at Rated Current Value: 95 W
• Melting I2t: 37 kA²s
• Indication System: Yes
• Catalogue No.: PC32UD69V550D1A
• Sell Pack Width: 5.71 in
• Sell Pack Length: 7.68 in
• Body/Insulating Material: Ceramic
• Fuse Size: 32
• Connection/Terminal Type: DIN Type Blades
• Sell Pack Quantity: 3 EACH
• Indication System Type: Striker
• Speed/Characteristic: aR
• Connection/Terminal Material: Silver-Plated Copper
• Rated voltage AC UL: 700 V
• Sell Pack Weight: 3.726 lb

Approvals & Standards

• IEC 60269-4 Compliance
• UL/CSA Recognized E76491
• CCC GB 13539.4
