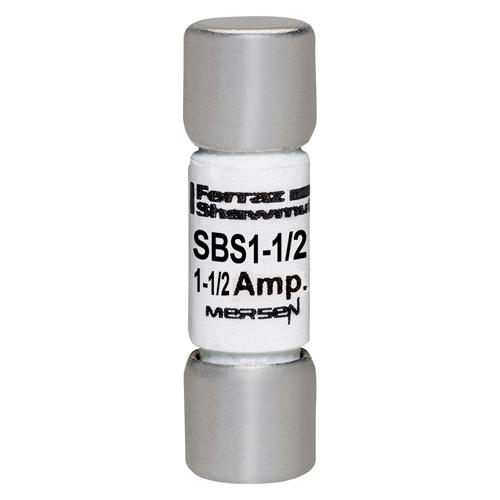

FERRAZ SBS1-1/2 600V 1 1/2A 1 3/8x1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$11.59/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # SBS1-1/2
North Coast Part # 420216

Features

  • Small unique physical size for maximum design flexibility and noninterchangeability with other fuse classes
  • Fiberglass body provides dimensional stability in harsh industrial environments
  • Can be used with UltraSafeTM fuse holder
  • 1 3/8" x 13/32" dimensions

Applications

  • Control circuits
  • Lighting ballasts
  • Meter circuits
  • Electronic circuits
  • General purpose protection

Approvals & Standards

  • UL Listed to standard 248-14 File E33925
  • CSA Certified to Standard C22.2 No. 248.14

Specifications

  • Rated voltage AC UL: 600 V
  • Ampere Rating: 1.5 A
  • ROHS Compliant: Yes
  • Fuse Class: Midget
  • Speed/Characteristic: Fast-Acting
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 100 kA
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.01 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.38 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.11 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Sell Pack Height: 2.12 in

Overview

UPC 78200190774
Family Brand Name Ferraz Shawmut
Item Long Description SBS midget fast-acting fuses were developed in response to the industry's demand for smaller equipment and components. They are the only fuses in their size with a full 600VAC rating for all ampere ratings by UL Standard 248-14 and CSA No. 59.2, and are the only fuses of this size with an interrupting rating of 100kA RMS, compared to 10kA on other brands.
GTiN 00782001907747
Length 1.38 in
Type Supplemental Protection
Diameter 0.41 in
Terminal Type Ferrule
Applications Control Circuits, Lighting Ballasts, Meter Circuits, Electronic Circuits
Mounting Type Clip
Weight 0.01 lb
Pkg Qty 10
Class M
Insulation Material GMG
Construction Fiberglass
TC Connection Ferrule
Amperage 1.5 Amp
Blade Dimensions 1-3/8 x 13/32 in
Interrupt Rating 100 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 600 V
Fuse Class Class M
Voltage 600 VAC
