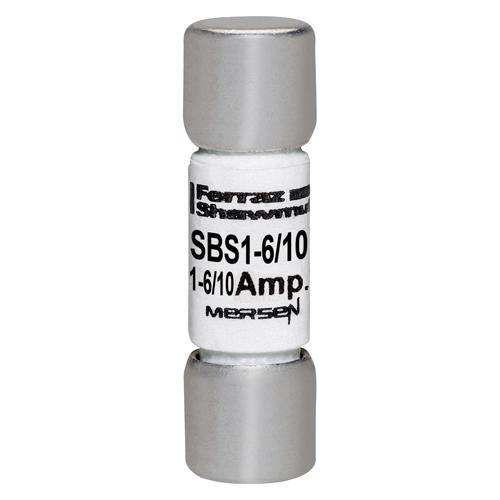

FERRAZ SBS1-6/10 600V 1 6/10A 1 3/8
$19.43/ea
Usually ships within 8 to 12 Days
ea
Adding...
Order in multiples of 10 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # SBS1-6/10
North Coast Part # 213825

Features

  • Small unique physical size for maximum design flexibility and noninterchangeability with other fuse classes
  • Fiberglass body provides dimensional stability in harsh industrial environments
  • Can be used with UltraSafeTM fuse holder
  • 1 3/8" x 13/32" dimensions

Applications

  • Control circuits
  • Lighting ballasts
  • Meter circuits
  • Electronic circuits
  • General purpose protection

Specifications

  • Sell Pack Height: 2.12 in
  • Product Weight: 0.01 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.38 in
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 100 kA
  • ROHS Compliant: Yes
  • Sell Pack Weight: 0.11 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Body/Insulating Material: GMG
  • Connection/Terminal Type: Ferrule
  • Sell Pack Quantity: 10 Each
  • Speed/Characteristic: Fast-Acting
  • Ampere Rating: 1.6 A
  • Fuse Class: Midget
  • Connection/Terminal Material: Tin-Plated Copper
  • Rated voltage AC UL: 600 V

Approvals & Standards

  • UL Listed to standard 248-14 File E33925
  • CSA Certified to Standard C22.2 No. 248.14
  • Approvals & Standards

Overview

UPC 78200190775
Family Brand Name Ferraz Shawmut
GTiN 00782001907754
Length 1.38 in
Type Supplemental Protection
Diameter 0.41 in
Terminal Type Ferrule
Applications Control Circuits Lighting Ballasts Meter Circuits Electronic Circuits
Mounting Type Clip
Weight 0.01 lb
Pkg Qty 10
Class M
Insulation Material GMG
TC Connection Ferrule
Amperage 1.6 Amp
Interrupt Rating 100 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 600 V
Fuse Class Midget
