FERRAZ SBS12 600V 12A 1 3/8x13/32 F

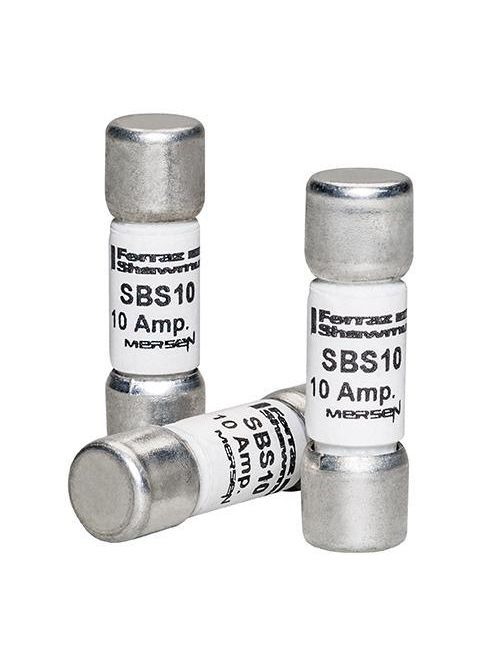

Product image thumbnail 0

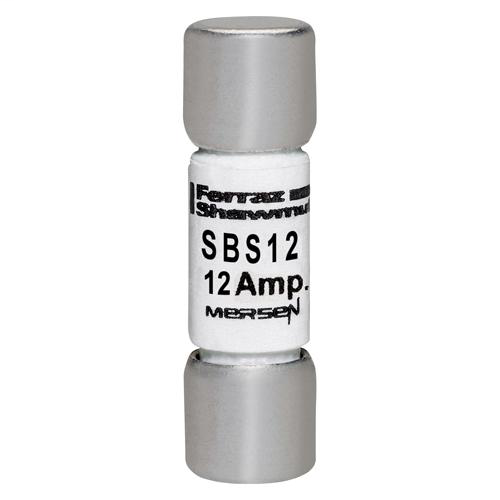

Product image thumbnail 1
$10.51/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # SBS12
North Coast Part # 603740

Features

  • Small unique physical size for maximum design flexibility and noninterchangeability with other fuse classes
  • Fiberglass body provides dimensional stability in harsh industrial environments
  • Can be used with UltraSafeTM fuse holder
  • 1 3/8" x 13/32" dimensions

Applications

  • Control circuits
  • Lighting ballasts
  • Meter circuits
  • Electronic circuits
  • General purpose protection

Approvals & Standards

  • UL Listed to standard 248-14 File E33925
  • CSA Certified to Standard C22.2 No. 248.14

Specifications

  • Rated voltage AC UL: 600 V
  • Ampere Rating: 12 A
  • ROHS Compliant: Yes
  • Fuse Class: Midget
  • Speed/Characteristic: Fast-Acting
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 100 kA
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.01 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.38 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.11 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Sell Pack Height: 2.12 in

Overview

UPC 78200190785
Family Brand Name Ferraz Shawmut
GTiN 00782001907853
Length 1.38 in
Type Supplemental Protection
Diameter 0.41 in
Terminal Type Ferrule
Applications Control Circuits Lighting Ballasts Meter Circuits Electronic Circuits
Mounting Type Clip
Weight 0.01 lb
Pkg Qty 10
Class M
Insulation Material GMG
TC Connection Ferrule
Amperage 12 Amp
Interrupt Rating 100 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 600 V
Fuse Class Midget
Voltage 600 VAC
