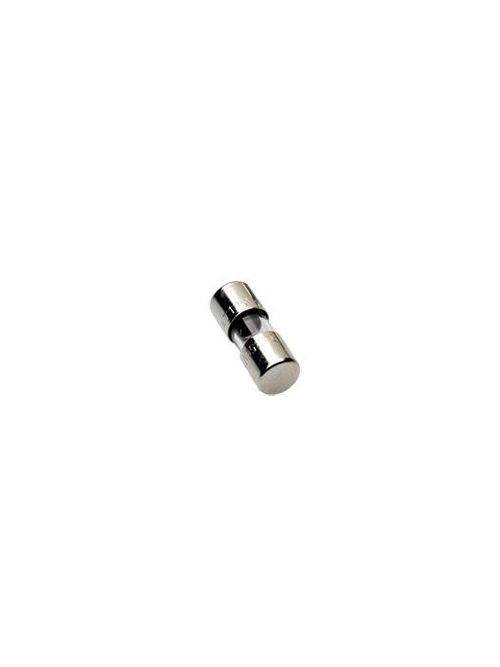

Ferraz Shawmut SMG8 4.5 x 14.5 mm 8 Amp 125 Volt Fast Acting Electronic Fuse
Product image thumbnail 0
Product image thumbnail 1
$1.08/ea
Usually ships within 8 to 12 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # SMG8
North Coast Part # 603767

Features

  • 4.5 x 14.5mm 2AG
  • Fasting Acting
  • SMG-V fuses have 1-1/2" wire lead each end.
  • Glass Body

Product Details

  • I.R. AC: 0.035 kA 0.1 kA 10 kA
  • Mounting: Clip
  • Applications: Electronic circuits
  • CE conformity: Consult Technical Services
  • AC Voltage Range: 125 - 350 VAC
  • Speed / Characteristic: Fast-Acting
  • Materials Contact: Nickel Plated Brass
  • Standards: 1/10A & 3/8A, 250VAC UL Listed CSA Cert., 1/8A - 7A, 350VAC, UL/CSA Recognized 8A & 10A, 125VAC RoHS Compliant
  • IR Other: 10 10kA @ 125VAC 150A @140VAC
  • Body Material: Ceramic
  • Connection Terminal Type: Ferrule
  • Lead Free: Consult Technical Services
  • I.R DC: 0.15 kA
  • DC Voltage: 140 VDC
  • CSA Certification: 1422-01 1422-01
  • ROHS Compliant: Consult Technical Services
  • Body Style: Cylindrical Non Rejection
  • UL Certification: E90660 JDYX2.E90660
  • Ampere Range: 1/10-10 A

Resources

Data Sheets

Overview

UPC 78200123754
Family Brand Name Ferraz Shawmut
GTiN 00782001237547
Voltage 125-350 Volt
Type Fast Acting
Applications Electronic Circuits
Mounting Type Clip
Body Material Ceramic
Contact Material Nickel Plated Brass
TC Connection Ferrule
Amperage 1/10-10 Amp
Blade Dimensions 4.5 mm dia x 14.5 mm L
Interrupt Rating 10 kA
