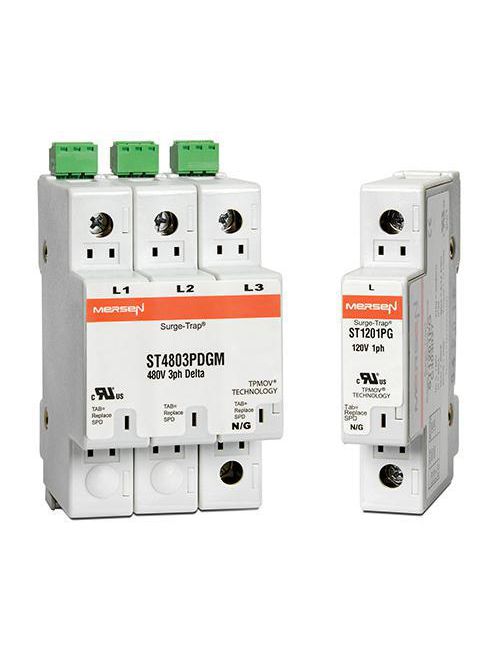

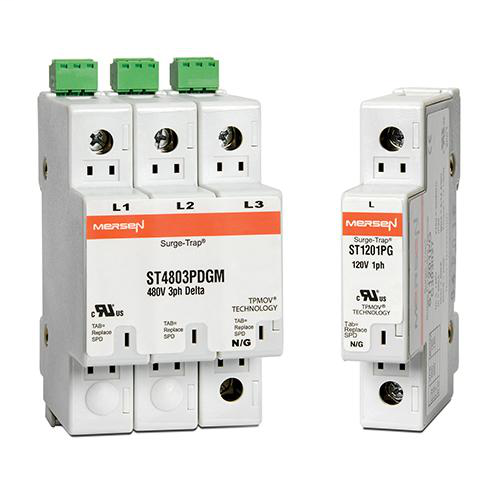

Mersen ST1201PG 1-Phase 20 kA 120 Volt Surge Protection Device
Product image thumbnail 0
Product image thumbnail 1
$210.10/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # ST1201PG
North Coast Part # 267252

Features

  • Easy installation or retrofit
  • DIN-rail mountable
  • Fail-safe, self-protected design
  • Remote indicator (optional)
  • Visual indicator
  • IP20 finger-safe design
  • Small footprint
  • No additional overcurrent protection devices required
  • 2-year warranty

Applications

  • AC/DC distribution
  • Power supplies
  • Industrial automation *Telecommunications
  • Motor controls and starter systems *Programmable logic controller (PLC) applications
  • Power transfer equipment
  • HVAC applications
  • AC drives
  • UPS systems
  • Security systems
  • IT / Data centers
  • Medical equipment

Approvals & Standards

  • ANSI/UL 1449 4th Edition, Type 1 Component Assembly SPD, File E210793
  • ANSI/IEEE C62.41.1, C62.41.2, C62.45
  • RoHS Compliant

Specifications

  • ROHS Compliant: Yes
  • UL SPD Type: Type 1 Component Assembly
  • Nominal Operating Volt Rating (Un): 120 V
  • AC or DC: AC
  • Nominal Discharge Current (In) (8/20): 20 kA
  • Max Discharge Current : Imax (8/20): 50 kA per phase
  • Protection Modes: L-G, L-N
  • System Configuration: Single Phase
  • Short Circuit Current Rating (SCCR): 200 (most models) kA
  • Indication System: Yes
  • Indication System Type: Visual Indicator
  • Number of Poles: 1-pole
  • Wiring range: #6 to #14 AWG
  • Connection/Terminal Material: Zinc-Plated Steel
  • Connection/Terminal Type: Box
  • Housing Material: PET (Polyethelene Terphthalate)
  • MOV Response Time: <25 ns
  • Number of Wires: 2 Wire
  • Installation Mounting: DIN Rail
  • MCOV L-G: 180 V
  • MCOV L-N: 180 V
  • VPR L-G: 500 V
  • VPR L-N: 500 V

Product Dimensions

  • Product Weight: 0.25 lb
  • Product Width: 0.7 in
  • Product Length: 3.58 in
  • Product Height: 2.7 in

Packaging Dimensions

  • Sell Pack Quantity: 3 Each
  • Sell Pack Width: 2.88 in
  • Sell Pack Length: 4.88 in
  • Sell Pack Height: 2.75 in

Overview

UPC 78200136137
Family Brand Name Mersen
GTiN 00782001361372
Length 3.58 in
Width 0.7 in
Type Surge-Trap SPD
Terminal Type Box
Applications AC/DC distribution Power supplies Industrial automation Telecommunications Motor controls and starter systems Programmable logic controller (PLC) applications Power transfer equipment HVAC applications AC drives UPS systems Security systems IT / Data centers Medical equipment
Mounting Type DIN Rail
Height 2.7 in
Weight 0.25 lb
Pkg Qty 3
Housing Material PET (Polyethelene Terphthalate)
TC Connection Box
Number of Poles 1 Pole
Number of Wires 2
Indicator Visual Indicator
Terminal Material Zinc-Plated Steel
Sub Brand Surge-Trap
Short Circuit Current Ratng 200000 A
Current Type AC
Max Discharge Current 50000 A
Nominal Discharge Current 20000 A
Voltage 120 VAC
