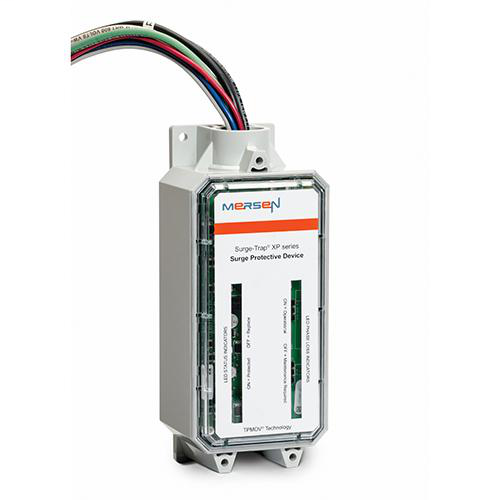

FERRAZ STXP480Y10 XP T1 100kA 480Y/
Product image thumbnail 0
Product image thumbnail 1
$1,592.40/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # STXP480Y10
North Coast Part # 1341198

Features

  • Designed with the industry leading Mersen TPMOVĀ® Technology (internally fused)
  • Enhanced 100kA surge capacity for longer life and higher single impulse withstand
  • Pre-wired with 3' leads for easy installation
  • Up to 10 Modes of Protection (L-N, L-L, L-G, N-G)
  • 10-year warranty

Approvals & Standards

  • ANSI/UL 1449 4th Edition, Type 1 SPD, File E210793
  • CSA C22.2, Type 1 SPD
  • ANSI/IEEE C62.41.1, C62.41.2, C62.45
  • UL96A Lightning Protection
  • RoHS Compliant

Specifications

  • Frequency: 50/60 Hz
  • ROHS Compliant: Yes
  • UL SPD Type: Type 1
  • Nominal Operating Volt Rating (Un): 480Y/277 V
  • AC or DC: AC
  • Nominal Discharge Current (In) (8/20): 20 kA
  • Max Discharge Current : Imax (8/20): 100 kA per phase
  • Protection Modes: L-G, L-L, L-N, N-G
  • System Configuration: 3-Phase Wye
  • Short Circuit Current Rating (SCCR): 200 kA
  • Indication System: Yes
  • Indication System Type: LED
  • Enclosure NEMA Type: 4X Non-Metallic
  • Housing Material: Polycarbonate
  • Installation Mounting: Panel or Wall Mount
  • MCOV L-G: 320 V
  • MCOV L-L: 640 V
  • MCOV N-G: 320 V
  • MCOV L-N: 320 V
  • VPR L-G: 1200 V
  • VPR L-L: 1800 V
  • VPR N-G: 1000 V
  • VPR L-N: 1200 V

Product Dimensions

  • Product Weight: 2.6 lb
  • Product Width: 3.13 in
  • Product Length: 7.49 in
  • Product Height: 2.72 in

Packaging Dimensions

  • Sell Pack Quantity: 1 Each
  • Sell Pack Weight: 2.73 lb
  • Sell Pack Width: 7.06 in
  • Sell Pack Length: 10.12 in
  • Sell Pack Height: 3.44 in

Overview

UPC 78200147050
Family Brand Name Mersen
GTiN 00782001470500
Length 7.49 in
Width 3.13 in
Applications Suitable for any Type 1 or 2 SPD application
Mounting Type Panel Mount,Wall Mount
Height 2.72 in
Weight 2.6 lb
Pkg Qty 1
Housing Material Polycarbonate
TC Connection Pre-wired with 3 ft 12 AWG conductors
Indicator LED
Short Circuit Current Ratng 200000 A
Current Type AC
Max Discharge Current 100000 A
Nominal Discharge Current 20000 A
Voltage 277/480 Volt
Frequency 50 Hz
