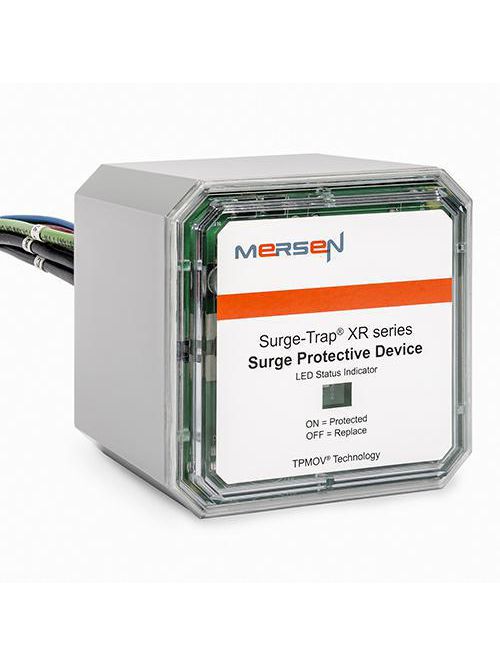

FERRAZ STXR208Y05 XR T1 50kA 208Y/1
Product image thumbnail 0
Product image thumbnail 1
$521.51/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # STXR208Y05
North Coast Part # 1437242

Features

  • Designed with the industry leading Mersen TPMOVĀ® Technology
  • LED status indicator (ON = Good, OFF = Replace)
  • NEMA 4X enclosure for outdoor or indoor use
  • Fits 3/4" knockouts with 3' leads for easy installation
  • Optional mounting bracket for surface mount applications
  • Optional audible alarm and remote dry contacts
  • For use in ANSI/UL Type 1 or 2 SPD installations
  • Up to 10 modes of Protection (L-N, L-L, L-G optional, N-G optional)
  • 5-year warranty

Applications

  • Suitable for any Type 1 or 2 SPD application
  • branch panel
  • individual equipment protection

Approvals & Standards

  • ANSI/UL 1449 4th Edition, Type 1 SPD, File E210793
  • CSA C22.2, Type 1 SPD
  • ANSI/IEEE C62.41.1, C62.41.2, C62.45
  • UL96A Lightning Protection
  • RoHS Compliant

Specifications

  • Frequency: 50/60 Hz
  • ROHS Compliant: Yes
  • UL SPD Type: Type 1
  • Nominal Operating Volt Rating (Un): 208Y/120 V
  • AC or DC: AC
  • Nominal Discharge Current (In) (8/20): 20 kA
  • Max Discharge Current : Imax (8/20): 50 kA per phase
  • Protection Modes: L-G, L-N, L-L
  • System Configuration: 3-Phase Wye
  • Short Circuit Current Rating (SCCR): 200 kA
  • Indication System: Yes
  • Indication System Type: LED
  • Enclosure NEMA Type: 4X Non-Metallic
  • Housing Material: Polycarbonate
  • Installation Mounting: Panel Mount
  • MCOV L-G: 300 V
  • MCOV L-L: 300 V
  • MCOV L-N: 150 V
  • VPR L-G: 1000 V
  • VPR L-L: 1000 V
  • VPR L-N: 600 V

Product Dimensions

  • Product Weight: 1.5 lb
  • Product Width: 3.35 in
  • Product Length: 3.25 in
  • Product Height: 3.35 in

Packaging Dimensions

  • Sell Pack Quantity: 1 Each
  • Sell Pack Weight: 1.58 lb
  • Sell Pack Width: 6 in
  • Sell Pack Length: 8 in
  • Sell Pack Height: 4 in

Overview

UPC 78200146995
Family Brand Name Ferraz Shawmut
GTiN 00782001469955
Length 3.25 in
Width 3.35 in
Applications For any Type 1 or 2 SPD Application
Mounting Type Panel
Height 3.35 in
Weight 1.5 lb
Pkg Qty 1
Class Type 1 SPD
Housing Material Polycarbonate
TC Connection Pre Wired with 3 ft 12 AWG Conductors
Indicator LED
Short Circuit Current Ratng 200000 A
Current Type AC
Max Discharge Current 50000 A
Nominal Discharge Current 20000 A
Voltage 120/208 Volt
Frequency 50 Hz
