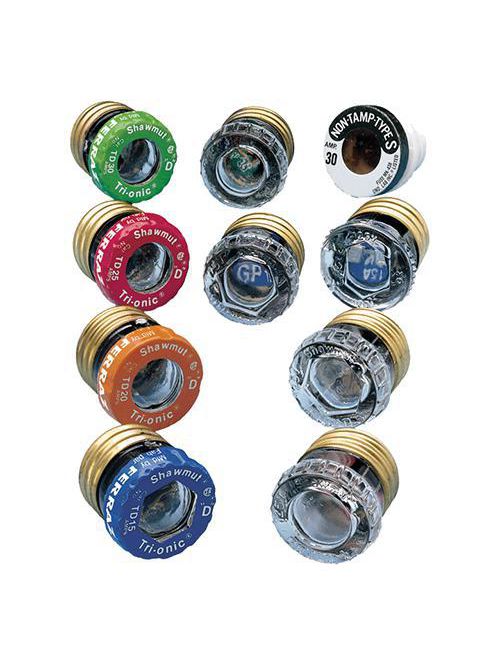

FERRAZ TD25 125V 25A -D- PLUG FUSE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$6.43/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # TD25
North Coast Part # 680303

Specifications

  • Rated voltage AC UL: 125 V
  • Ampere Rating: 25 A
  • Fuse Class: Plug
  • Speed/Characteristic: Time Delay
  • Mounting: Screw
  • AC Max I.R./Breaking Capacity: I1: 10 kA
  • Indication System: Yes
  • Indication System Type: Visual Indicator
  • Connection/Terminal Material: Brass
  • Connection/Terminal Type: Screw
  • Body/Insulating Material: Glass

Product Dimensions

  • Product Weight: 0.06 lb
  • Product Diameter: 1.13 in
  • Product Length: 1.29 in

Packaging Dimensions

  • Sell Pack Quantity: 4 Each
  • Sell Pack Weight: 0.25 lb
  • Sell Pack Width: 2.31 in
  • Sell Pack Length: 1.38 in
  • Sell Pack Height: 2.31 in

Overview

Family Brand Name Ferraz Shawmut
Product UPC 06893883994
GTiN 00068938839949
Length 1.29 Inch
Size 1.126 x 1.29 Inches
Type Time-Delay
Diameter 1.13 in
Material Screw In
Terminal Type Screw
Applications For Industrial and Residential, Receptacle and Lighting Circuits
Mounting Type Screw-in, Plug-in
Weight 0.06 lb
Pkg Qty 4
Insulation Material Glass
TC Connection Screw In
Amperage 25 Amp
Blade Dimensions 1.126 x 1.29 in
Interrupt Rating 10 kA
Indicator Visual Indicator
Terminal Material Brass
Rated Voltage AC 125 V
Fuse Class Plug
Voltage 125 VAC
