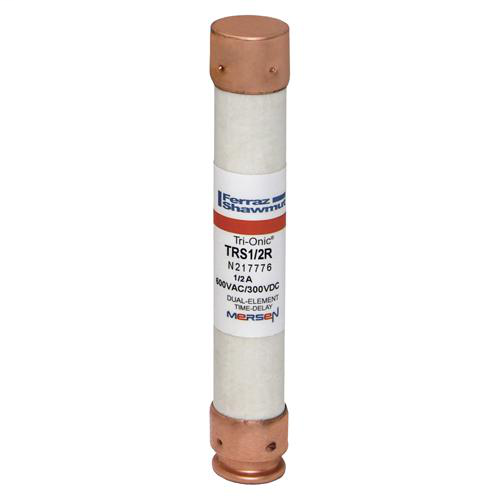

Mersen TRS1/2R 13/16 x 5 Inch 1/2 Amp 600 Volt Class RK5 Current Limiting Time Delay Fuse
$21.47/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # TRS1/2R
North Coast Part # 65646

Features

  • Time-delay
  • Current-limiting
  • AC & DC rated
  • Optional solid state SmartSpot blown fuse indicator
  • Time-delay for motor start-ups and transformer inrush currents without nuisance opening
  • Current-limiting for low peak let-thru current
  • Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
  • Easy-to-read label for quick brand recognition and replacement
  • Metal-embossed date and catalog number for traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings
  • High-grade silica filler ensures fast arc quenching and high current limitation

Applications

  • Motor circuits
  • Mains
  • Feeders
  • Branch circuits
  • Transformers
  • Service entrance equipment
  • General-purpose equipment

Approvals & Standards

  • UL listed to standard 248-12 File E2137
  • CSA certified to standard C22.2 no. 248.12
  • DC listed to UL standard 248 TRS only

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 600 V
  • Frequency: 50/60 Hz
  • Ampere Rating: 0.5 A
  • Fuse Class: Class RK5
  • Speed/Characteristic: Time Delay
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Connection/Terminal Material: Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: PolyTube

Product Dimensions

  • Product Weight: 0.2 lb
  • Product Diameter: 0.81 in
  • Product Length: 5 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 2.1 lb
  • Sell Pack Width: 4.12 in
  • Sell Pack Length: 5.12 in
  • Sell Pack Height: 1.75 in

Categories

Overview

UPC 78200174855
Family Brand Name Ferraz Shawmut
GTiN 00782001748555
Length 5 in
Type Time Delay
Diameter 0.81 in
Terminal Type Ferrule
Applications Motor Circuits Mains Feeders Branch Circuits Transformers Service Entrance Equipment General-Purpose Equipment
Mounting Type Clip
Weight 0.2 lb
Frequency 50 Hz
Pkg Qty 10
Class RK-5
Insulation Material PolyTube
TC Connection Ferrule
Amperage 0.5 Amp
Interrupt Rating 200 kA
Terminal Material Copper
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Fuse Class Class RK5
Voltage null
