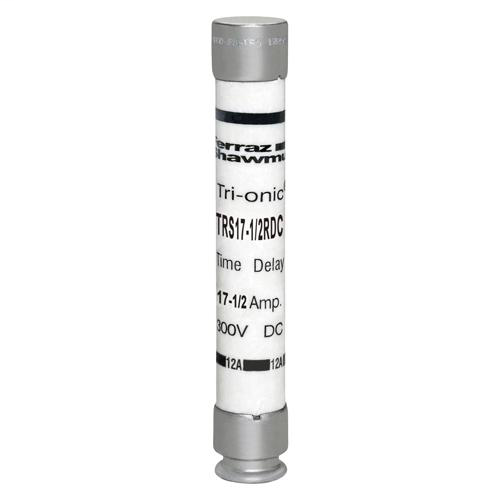

FERRAZ TRS17-1/2RDC 74896-FUSE TRIO
Product image thumbnail 0
Product image thumbnail 1
$17.55/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # TRS17-1/2RDC
North Coast Part # 603801

Features

  • DC rated for mine duty and other long time-constant applications
  • Time-delay for motor start-ups and high inrush loads without nuisance opening
  • Rugged glass melamine body for superior reliability in harsh environments

Applications

  • Mine circuits
  • Trailing cables
  • Pump motors
  • Rail heaters

Approvals & Standards

  • MSHA approval no. 28-26-0

Specifications

  • Rated voltage DC UL: 300 V
  • Ampere Rating: 17.5 A
  • Fuse Class: Class RK5
  • Speed/Characteristic: Time Delay
  • Mounting: Clip
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.2 lb
  • Product Diameter: 0.81 in
  • Product Length: 5 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Width: 4.12 in
  • Sell Pack Length: 5.12 in
  • Sell Pack Height: 1.75 in

Overview

UPC 78200174896
Family Brand Name Ferraz Shawmut
GTiN 00782001748968
Length 5 in
Type MSHA DC-Rated
Diameter 0.81 in
Terminal Type Ferrule
Applications Mine Circuits Trailing Cables Pump Motors Rail Heaters
Mounting Type Clip
Weight 0.2 lb
Pkg Qty 10
Class RK-5
Insulation Material GMG
TC Connection Ferrule
Amperage 17.5 Amp
Interrupt Rating 20 kA
Terminal Material Tin-Plated Copper
Rated Voltage DC 300 V
Fuse Class Class RK5
Voltage 300 VDC
