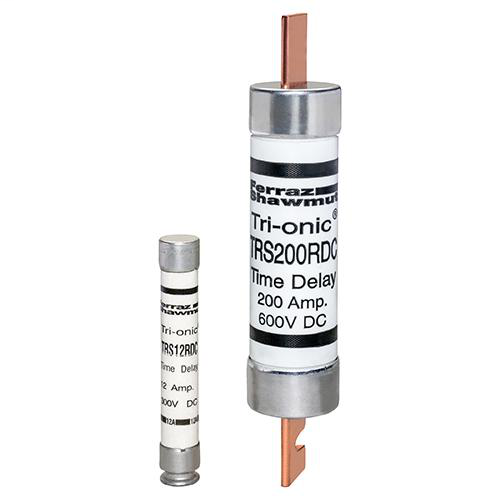

FERRAZ TRS90RDC 74837-FUSE,TRIONIC
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$69.46/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # TRS90RDC
North Coast Part # 603834

Features

  • DC rated for mine duty and other long time-constant applications
  • Time-delay for motor start-ups and high inrush loads without nuisance opening
  • Rugged glass melamine body for superior reliability in harsh environments

Applications

  • Mine circuits
  • Trailing cables
  • Pump motors
  • Rail heaters

Approvals & Standards

  • MSHA approval no. 28-26-0

Specifications

  • Rated voltage DC UL: 600 V
  • Ampere Rating: 90 A
  • Fuse Class: Class RK5
  • Speed/Characteristic: Time Delay
  • Mounting: Clip
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Blade
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.68 lb
  • Product Diameter: 1.31 in
  • Product Length: 7.88 in

Packaging Dimensions

  • Sell Pack Quantity: 5 Each
  • Sell Pack Weight: 3.57 lb
  • Sell Pack Width: 6.66 in
  • Sell Pack Length: 8 in
  • Sell Pack Height: 1.38 in

Overview

UPC 78200174837
Family Brand Name Ferraz Shawmut
Item Long Description Tri-Onic TRS-RDC time-delay fuse is designed for DC circuit protection in surface and underground mines. The TRS-RDC is MSHA approved and meets the industry's most severe third party requirements for 600VDC rated fuses.
GTiN 00782001748371
Length 7.88 in
Type MSHA DC-Rated
Diameter 1.31 in
Terminal Type Blade
Applications Mine Circuits Trailing Cables Pump Motors Rail Heaters
Mounting Type Clip
Weight 0.68 lb
Pkg Qty 5
Class RK-5
Insulation Material GMG
TC Connection Blade
Amperage 90 Amp
Interrupt Rating 20 kA
Terminal Material Tin-Plated Copper
Rated Voltage DC 600 V
Fuse Class Class RK5
Voltage 600 VDC
