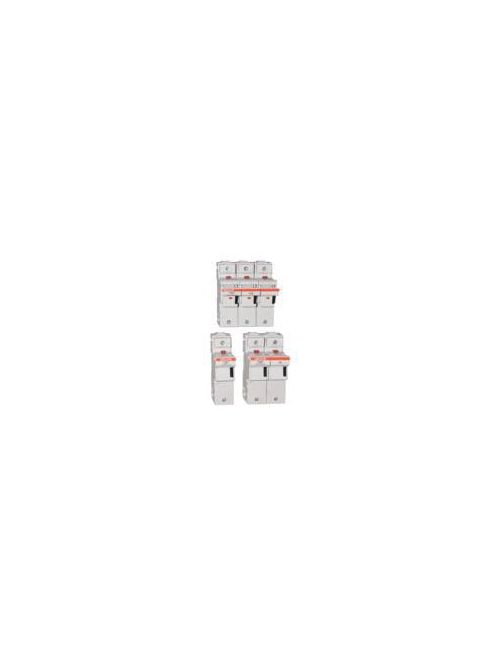

Ferraz Shawmut US221I 22 mm 1-Pole 100 Amp 750 VAC/VDC Modular Fuse Holder with Indicator

Features

• Multi-pole assembly kit available
• Modular design
• DIN rail mounting
• Plastic material UL94V2 mini
• Degree of protection: IP20
• Finger safe
• Optional visual blown fuse indicator & microswitch
• Sealable in closed and open position
• Lockable
• Flame retardant materials with glow wire flammability index to 960°C

Product Details

• Applications: All circuits up to 750V for protection of motors, transformers, low voltage distribution, control circuits Non-load operation
• CE conformity: Yes
• SCCR: 100 kA 200 kA
• AC Voltage: 750 VAC
• Connection Terminal Type: Pressure Plate
• Enclosure: IP20
• ROHS Compliant: Yes
• Lead Free: Consult Technical Services
• Mounting: DIN-rail Installation On To DIN Rails To EN 60717
• Number of Poles: 1 1 + N 1, 2, 3 2 3 3 + N
• Wiring Range: 1/0 to #14 Solid/Stranded Cu Wire
• Materials Contact: Tin-plated Copper
• Size per Standard: 22x58
• Ampere: 125 A
• Body Material: Polyamide
• Standards: UL Recognized Component, UL4248, guide IZLT2, file E52283 CSA Certified C22.2, class 6225, file 32169 IEC 60269-2 and IEC 60947-3 RoHS Compliant Plastic material: NF 16101 & 16102 Requirement 2 Compliant
• DC Voltage Range: 690 - 750 VDC
