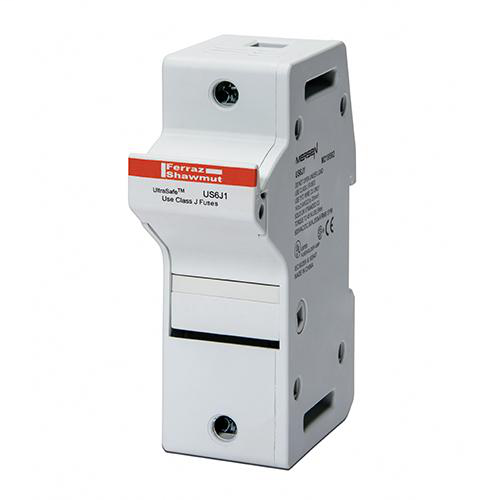

FERRAZ US6J2I 60A J 2P ULTRASAFE W/
$133.07/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # US6J2I
North Coast Part # 65534

Features

  • Holder not UL listed when installed with French Ferrule fuses.
  • US3J, US6J use with AJT, A4J, HSJ
  • Finger-safe IP20 protection
  • Optional indicator lights
  • DIN-rail mount
  • Compact footprint
  • Quick, easy fuse change

Applications

  • 600 volt motors, transformers, lighting, heating, control circuits, general loads
  • Non-load disconnect

Specifications

  • Sell Pack Height: 3.74 in
  • Product Weight: 1.22 lb
  • Product Length: 4.8 in
  • Product Width: 3.15 in
  • Wiring range: #2 to 14 AWG
  • Ampere Rating: 60 A
  • Installation Mounting: DIN Rail
  • Fuse Type/Class: Class J
  • Product Height: 3.5 in
  • Indication System: Yes
  • ROHS Compliant: Yes
  • Sell Pack Width: 5.12 in
  • Sell Pack Length: 10.24 in
  • Body/Insulating Material: Polyamide
  • Max Fuse Rating: 60 A
  • Sell Pack Quantity: 3 Each
  • Indication System Type: LED
  • Fuse Installation Method: Clip-in
  • Short Circuit Current Rating (SCCR): 200
  • Fuse Class: Class J
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 600 V
  • Number of Poles: 2-pole

Approvals & Standards

  • UL Listed, guide IZLT File E52283
  • CSA Certified C22.2, class 6225 01, File 32169
  • IEC certified 60269-1, 60947-3
  • Approvals & Standards

Categories

Overview

UPC 78200183090
Family Brand Name Ferraz Shawmut
GTiN 00782001830908
Length 4.8 in
Width 3.15 in
Type UltraSafe
Connector Type Pressure Plate
Applications 600 V Motors, Transformers, Lighting, Heating, Control Circuits, General Loads
Mounting Type DIN Rail
Height 3.5 in
Weight 1.22 lb
Fuse Type 22 x 58 mm Class J
Pkg Qty 3
Class J
Insulation Material Polyamide
TC Connection Pressure Plate
Amperage 60 Amp
Fuse Interrupt Rating 60 A
Number of Poles 2 Pole
Indicator LED
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Fuse Class Class J
Voltage null
