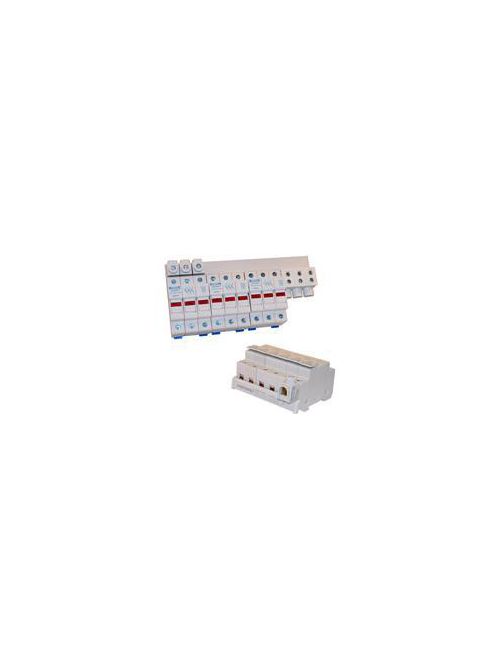

Ferraz Shawmut USBB1PH25K4 4-Pole 25 square mm 600 VAC/1000 VDC 1-Phase Busbar
Product image thumbnail 0
Product image thumbnail 1
$13.81/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # USBB1PH25K4
North Coast Part # 1273790

Features

  • Cuttable design offers flexibility
  • Environmentally conscious, RoHS compliant and lead free
  • Decrease installation time compared to wire solutions
  • Reduce shock hazards with touchsafe cover (included)
  • Save panel space with compact design and footprint

Product Details

  • Number of Poles: 4, 6, 8, 9, 10, 12, 15
  • CE conformity: Consult Technical Services
  • Applications: Applications where Mersen USM/USCC fuseholders are in use UL 508 panels Solar string combiner boxes Control panels Power distribution panels
  • Ampere Range: 100 - 200 A
  • ROHS Compliant: Consult Technical Services
  • AC Voltage Range: 600 - 600 VAC
  • Connection Terminal Type: Comb Bus Bar
  • Materials Contact: Copper Brass
  • Lead Free: Consult Technical Services
  • Standards: UL Listed to standard UL508, File E348854 IEC Compliant to standard 60947-2
  • Class: Accessory
  • UL Certification: E348854 NMTR.E348854
  • DC Voltage Range: 600 - 1000 VDC

CAD & Outline Drawings

CAD Drawings

Resources

Data Sheets

Compliance

Overview

UPC 78200144749
Family Brand Name Ferraz Shawmut
GTiN 00782001447496
Voltage 600 Volt
Type UltraSafe Accessories
Applications Applications where Mersen USM/USCC fuseholders are in use UL 508 panels Solar string combiner boxes Control panels Power distribution panels
Contact Material Brass,Copper
TC Connection Comb Bus Bar
Amperage 100-200 Amp
Number of Poles 10,12,15,4,6,8,9
