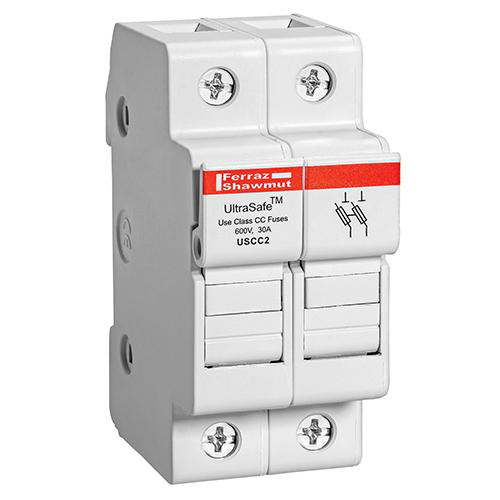

Ferraz Shawmut USCC2 2-Pole 30 Amp 600 Volt Class CC Modular Fuse Holder
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # USCC2
North Coast Part # 215450


  • IP20 Finger-Safe (touch safe)
  • Optional visual blown fuse Indicator lights
  • DIN-rail mounting
  • Compact footprint
  • Quick, tool-free, easy fuse change outs
  • ATM, DCT, ATMR recommended for DC applications


  • UL Listed to Standard 4248- 4 (class CC) and 4248-1 (midget), File E52283
  • UL Listed to standard 4248-18 (photovoltaic), File E347822
  • CSA Certified C22.2
  • IEC 60269-2-1 and 60947-3 Compliant (USM only)


  • USM use with: ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A13X-2, A60Q-2, DCT, HP6M, HP10M
  • USCC use with: ATDR, ATMR, ATQR
  • Frequency Hz: 50/60 Hz
  • Max Operating Temp: 80 °C
  • Max Storage Temp: 80 °C
  • Min Storage Temp: -25 °C
  • Short Circuit Current Rating Sccr: 200 kA
  • Ampere Rating: 30 A
  • Max Fuse Rating: 30 A
  • Rated Voltage Ac Ul: 600 V
  • Rated Voltage Dc Ul: 600 V
  • Torque Rating: 15 lb-in
  • Country Of Origin: CN
  • Product Line: USCC - Class CC
  • Product Brand: UltraSafe™
  • Body Insulating Material: GFPC
  • Installation Mounting: DIN Rail
  • Number Of Poles: 2-pole
  • Wiring Range: Cu #6-14
  • Fuse Installation Method: Clip-in
  • Wire Connections: Pressure Plate


UPC 78200182988
Family Brand Name Ferraz Shawmut
Item Long Description Mersen UltraSafe Modular Fuse holders introduce a new level of safety for Class CC (USCC) and Midget 1-1/2" x 13/32" (USM) AC and DC rated fuses up to 30 amperes. UltraSafe holders qualify as Fingersafe under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). UltraSafe holders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators in each pole. Multi-pole units can also be field assembled by ordering pin-tie handles. UltraSafe holders save up to 15% mounting space and any combination can be snapped onto 35mm DIN-rail for extra savings in panel building time. UltraSafe holders with Class CC fuses chosen for Type 2 No Damage protection give one of the safest protection packages in the industry. UltraSafe body material is tough and durable polyamide, with exceptional insulating properties.
GTiN 00782001829889
Length 3.07 in
Width 1.38 in
Type UltraSafe
Connector Type Pressure Plate
Applications For Motors, Control Circuits, Transformers, etc.
Mounting Type DIN Rail
Height 2.32 in
Weight 0.28 lb
Fuse Type 10 x 38 mm Class CC
Pkg Qty 6
Class CC
Insulation Material GFPC
TC Connection Pressure Plate
Amperage 30 Amp
Fuse Interrupt Rating 30 A
Number of Poles 2 Pole
Used With All Circuits (Including Branch-Circuits) up to 600 VAC/DC
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Short Circuit Current Ratng 200000 A
Fuse Class Class CC
Voltage 600 Volt
Country of Origin China
Frequency 50 Hz
Max Operating Temperature 80 C
Torque Rating 15 lb-in
