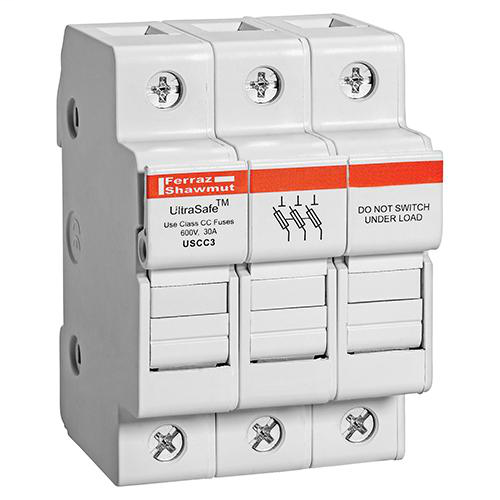

Ferraz Shawmut USCC3 3-Pole 30 Amp 600 Volt Class CC Modular Fuse Holder
$87.00/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # USCC3
North Coast Part # 215463

Features

  • IP20 Finger-Safe (touch safe)
  • Optional visual blown fuse Indicator lights
  • DIN-rail mounting
  • Compact footprint
  • Quick, tool-free, easy fuse change outs
  • USM use with: ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A13X-2, A60Q-2, DCT, HP6M, HP10M
  • USCC use with: ATDR, ATMR, ATQR
  • ATM, DCT, ATMR recommended for DC applications

Applications

  • All circuits up to 600 volts for motors, control circuits, transformers, etc…
  • DC circuits up to 1000VDC including photovoltaic applications
  • Non-load disconnect

Specifications

  • Sell Pack Height: 2.66 in
  • Product Weight: 0.43 lb
  • Product Length: 3.07 in
  • Product Width: 2.07 in
  • Wiring range: Cu #6-14
  • Ampere Rating: 30 A
  • Installation Mounting: DIN Rail
  • Fuse Type/Class: Class CC
  • Product Height: 2.32 in
  • ROHS Compliant: Yes
  • Sell Pack Width: 3.5 in
  • Sell Pack Length: 8.5 in
  • Body/Insulating Material: GFPC
  • Max Fuse Rating: 30 A
  • Sell Pack Quantity: 4 Each
  • Fuse Installation Method: Clip-in
  • Short Circuit Current Rating (SCCR): 200 kA
  • Fuse Class: Class CC
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 600 V
  • Number of Poles: 3-pole

Approvals & Standards

  • UL Listed to Standard 4248- 4 (class CC) and 4248-1 (midget), File E52283
  • UL Listed to standard 4248-18 (photovoltaic), File E347822
  • CSA Certified C22.2
  • IEC 60269-2-1 and 60947-3 Compliant (USM only)
  • Approvals & Standards

Overview

UPC 78200182990
Family Brand Name Ferraz Shawmut
GTiN 00782001829902
Length 3.07 in
Width 2.07 in
Type UltraSafe
Connector Type Pressure Plate
Applications For Motors, Control Circuits, Transformers, etc.
Mounting Type DIN Rail
Height 2.32 in
Weight 0.43 lb
Fuse Type 10 x 38 mm Class CC
Pkg Qty 4
Class CC
Insulation Material GFPC
TC Connection Pressure Plate
Amperage 30 Amp
Fuse Interrupt Rating 30 A
Number of Poles 3 Pole
Used With All Circuits (Including Branch-Circuits) up to 600 VAC/DC
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Short Circuit Current Ratng 200000 A
Fuse Class Class CC
Voltage null
