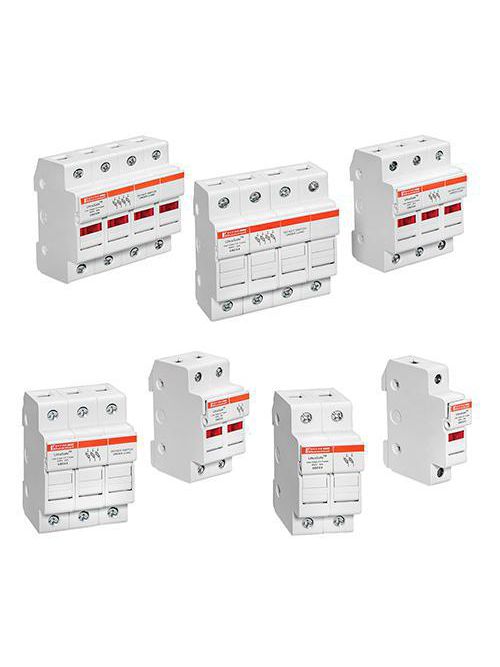

FERRAZ USCC4 600V 30A 4P CC ULTSFE
Product image thumbnail 0
Product image thumbnail 1
$135.13/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # USCC4
North Coast Part # 215479

Features

  • IP20 Finger-Safe (touch safe)
  • Optional visual blown fuse Indicator lights
  • DIN-rail mounting
  • Compact footprint
  • Quick, tool-free, easy fuse change outs
  • USM use with: ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A13X-2, A60Q-2, DCT, HP6M, HP10M
  • USCC use with: ATDR, ATMR, ATQR
  • ATM, DCT, ATMR recommended for DC applications

Applications

  • All circuits up to 600 volts for motors, control circuits, transformers, etc…
  • DC circuits up to 1000VDC including photovoltaic applications
  • Non-load disconnect

Approvals & Standards

  • UL Listed to Standard 4248- 4 (class CC) and 4248-1 (midget), File E52283
  • UL Listed to standard 4248-18 (photovoltaic), File E347822
  • CSA Certified C22.2
  • IEC 60269-2-1 and 60947-3 Compliant (USM only)

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 600 V
  • Ampere Rating: 30 A
  • ROHS Compliant: Yes
  • Fuse Class: Class CC
  • Short Circuit Current Rating (SCCR): 200 kA
  • Fuse Type/Class: Class CC
  • Number of Poles: 4-pole
  • Wiring range: Cu #6-14
  • Fuse Installation Method: Clip-in
  • Body/Insulating Material: GFPC
  • Max Fuse Rating: 30 A
  • Installation Mounting: DIN Rail

Product Dimensions

  • Product Weight: 0.56 lb
  • Product Width: 2.76 in
  • Product Length: 3.07 in
  • Product Height: 2.32 in

Packaging Dimensions

  • Sell Pack Quantity: 3 Each
  • Sell Pack Weight: 1.76 lb
  • Sell Pack Width: 3.5 in
  • Sell Pack Length: 8.5 in
  • Sell Pack Height: 2.66 in

Overview

UPC 78200182994
Family Brand Name Ferraz Shawmut
GTiN 00782001829940
Length 3.07 in
Width 2.76 in
Type UltraSafe
Applications All circuits (including branch-circuits) up to 600 volts (AC or DC) for motors, control circuits, transformers, etc.
Mounting Type DIN Rail
Height 2.32 in
Weight 0.56 lb
Pkg Qty 3
Class CC
Insulation Material GFPC
TC Connection Pressure Plate
Amperage 30 Amp
Fuse Interrupt Rating 30 A
Number of Poles 4 Pole
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Short Circuit Current Ratng 200000 A
Fuse Class Class CC
Voltage 600 VAC
Fuse Type Class CC
